Power Window Circuit Breaker: Testing and Inspection

INSPECT CIRCUIT BREAKER OPERATION







1. Disconnect the connector from the master switch.

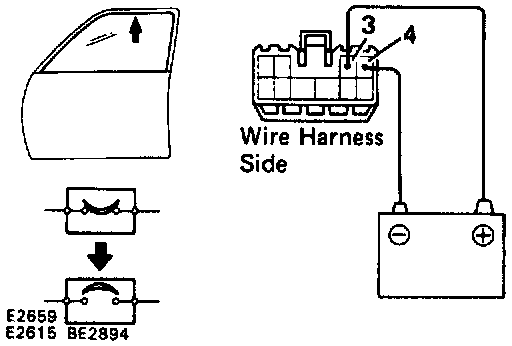

2. Connect the positive (+) lead from the battery to terminal 3 and the negative (-) lead to terminal 4 on the wire harness side connector, and raise the window to full closed position.
3. Continue to apply voltage, check that there is a circuit breaker operation noise within approximately 4 - 40 seconds.

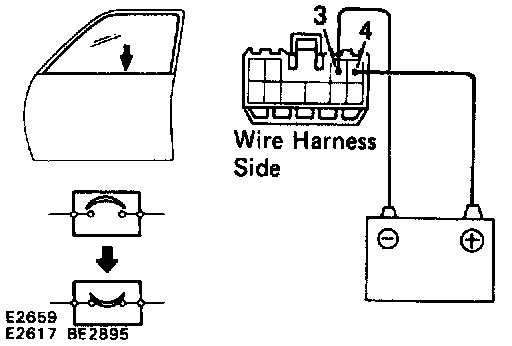

4. Reverse the polarity, check that the window begins to descend within approximately 60 seconds.

If operation is not as specified, replace the motor.
