Catalytic Converter: Service and Repair

CATALYTIC CONVERTER REPLACEMENT

REPLACE CENTER EXHAUST PIPE

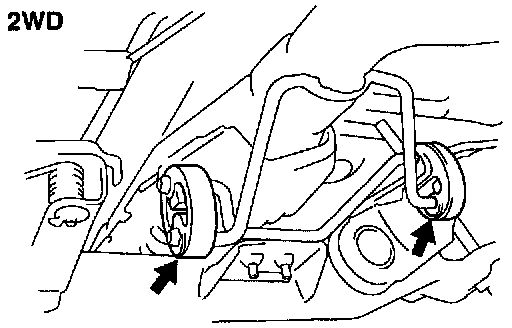

(a) 2WD:
Disconnect the 2 rings from the support bracket.
(b) Remove the 2 nuts and gasket, and disconnect the heated oxygen sensor (bank 1 sensor 2).

Torque: 20 N.m (200 kgf.cm, 14 ft.lbf)

INSTALLATION HINT: Use a new gasket.

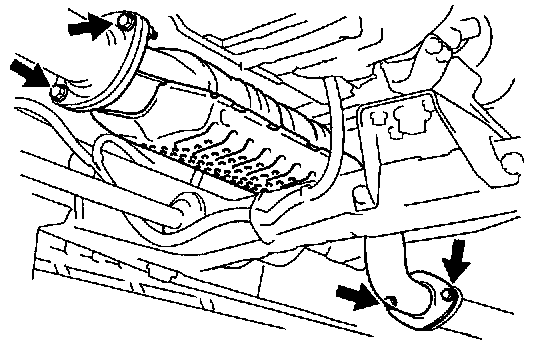

(c) Remove the 4 bolts, TWC joint retainer, center exhaust pipe and 2 gasket.

Torque: 48 N.m (490 kgf.cm, 35 ft.lbf)

INSTALLATION HINT: Place 2 new gaskets on the front exhaust and tail pipes. and temporarily install the center exhaust pipe.
