Heater Core: Service and Repair

HEATER RADIATOR REMOVAL







1. REMOVE HEATER UNIT
Service and Repair

2. REMOVE HEATER RADIATOR

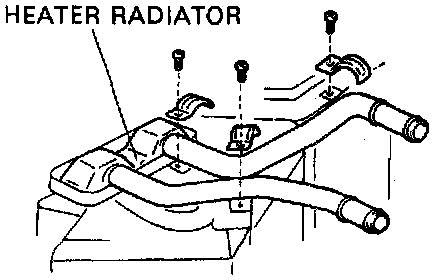

a. Remove the 3 screws and the 3 plates.
b. Pull the heater radiator out.

HEATER RADIATOR INSTALLATION
Installation is in the reverse order of removal.
