Installation

PISTON AND CONNECTING ROD ASSEMBLY INSTALLATION
1. Cover the connecting rod bolts with a short piece of hose to protect the crankshaft from damage.

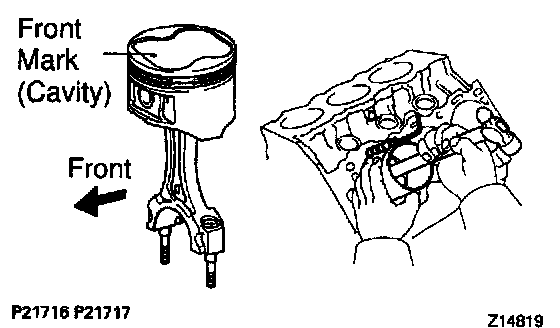

2. Using a piston ring compressor, push the correctly numbered piston and connecting rod assemblies into each cylinder with the front mark of the piston facing forward.
