Toyota Truck
>>
1997
>>
T100 Regular Cab Pickup 2WD V6-3.4L (5VZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Steering
>>
System Diagram
System Diagram

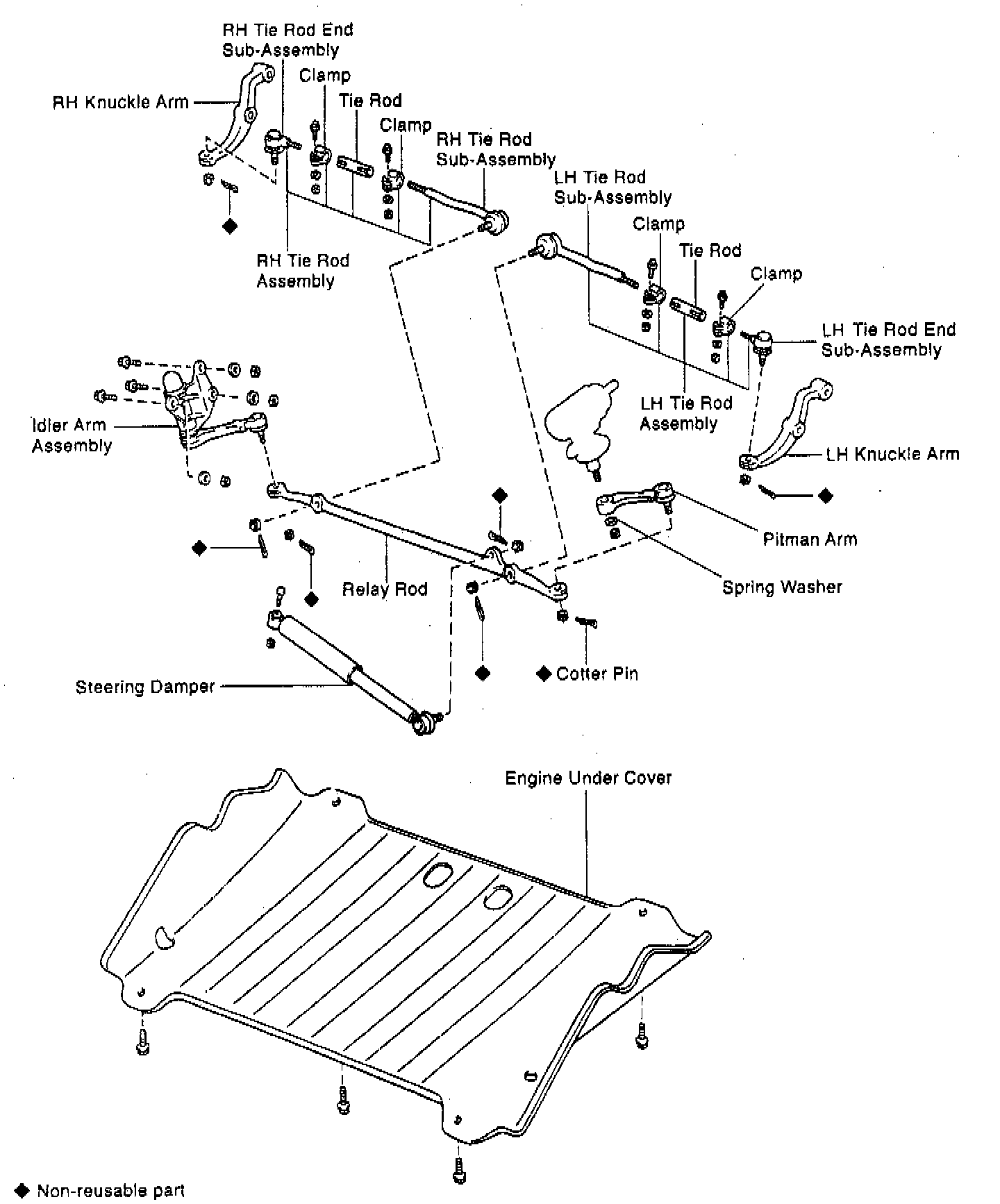

Steering Linkage:
