Toyota Truck
>>
1997
>>
T100 Regular Cab Pickup 2WD V6-3.4L (5VZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Computers and Control Systems
>>
Throttle Position Sensor
Throttle Position Sensor

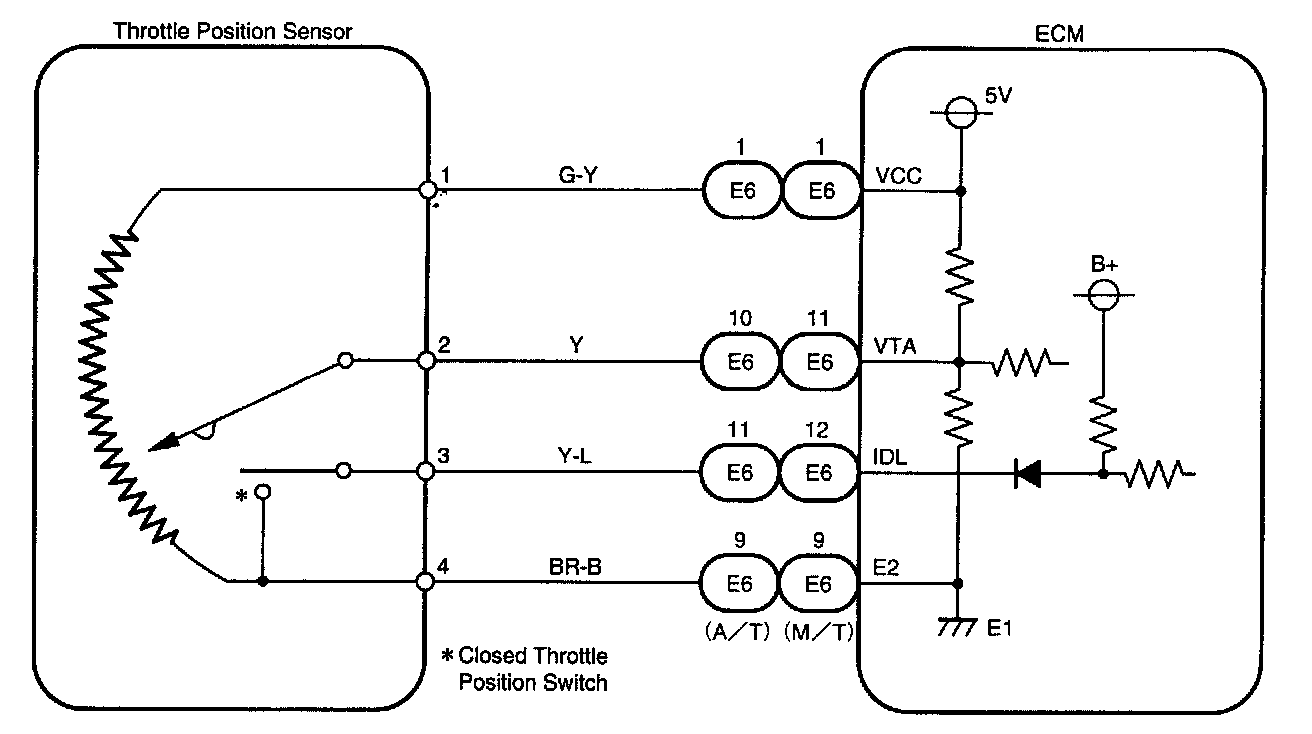

3RZ-FE

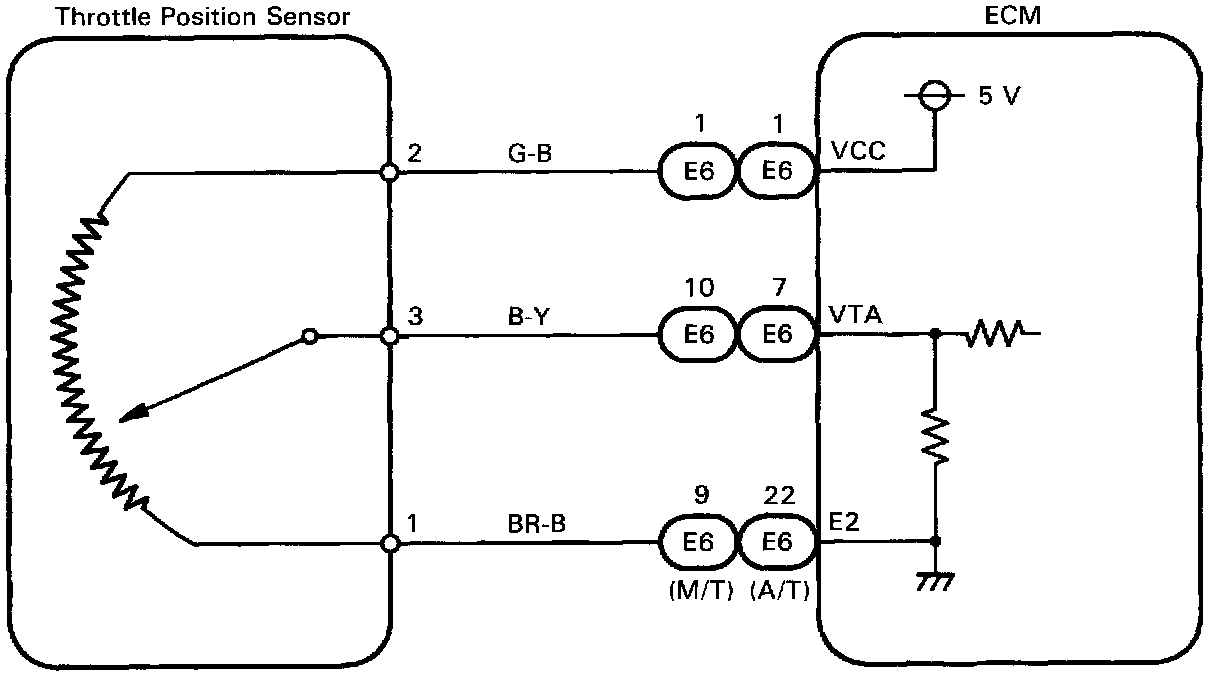

5VZ-FE
