Cruise Main Indicator Light Circuit

CRUISE MAIN INDICATOR LIGHT CIRCUIT

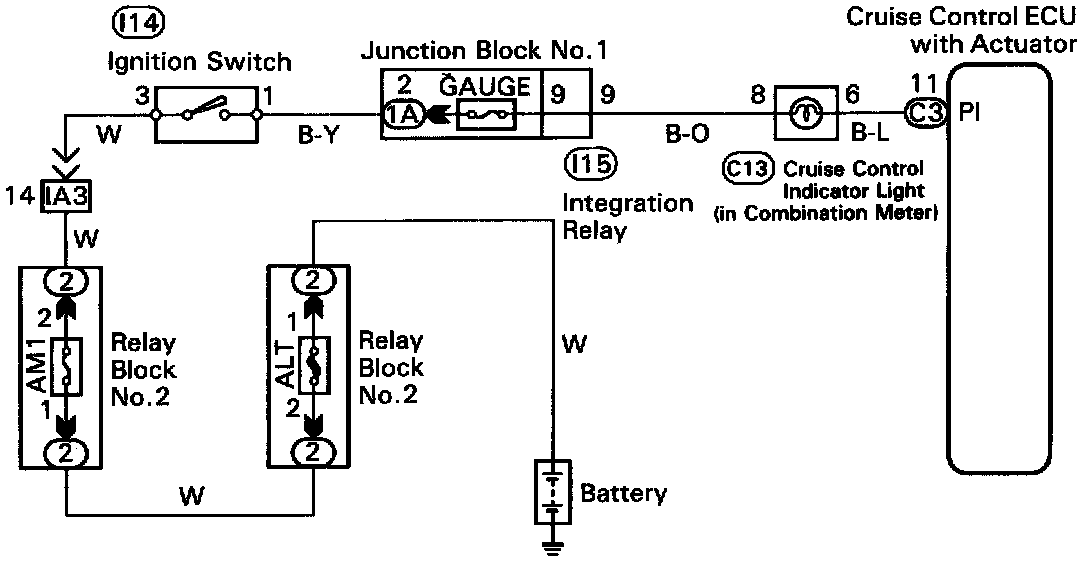

Cruise Main Indicator Light Circuit:






CIRCUIT DESCRIPTION
When the cruise control main switch is turned ON, CRUISE MAIN indicator light lights up.

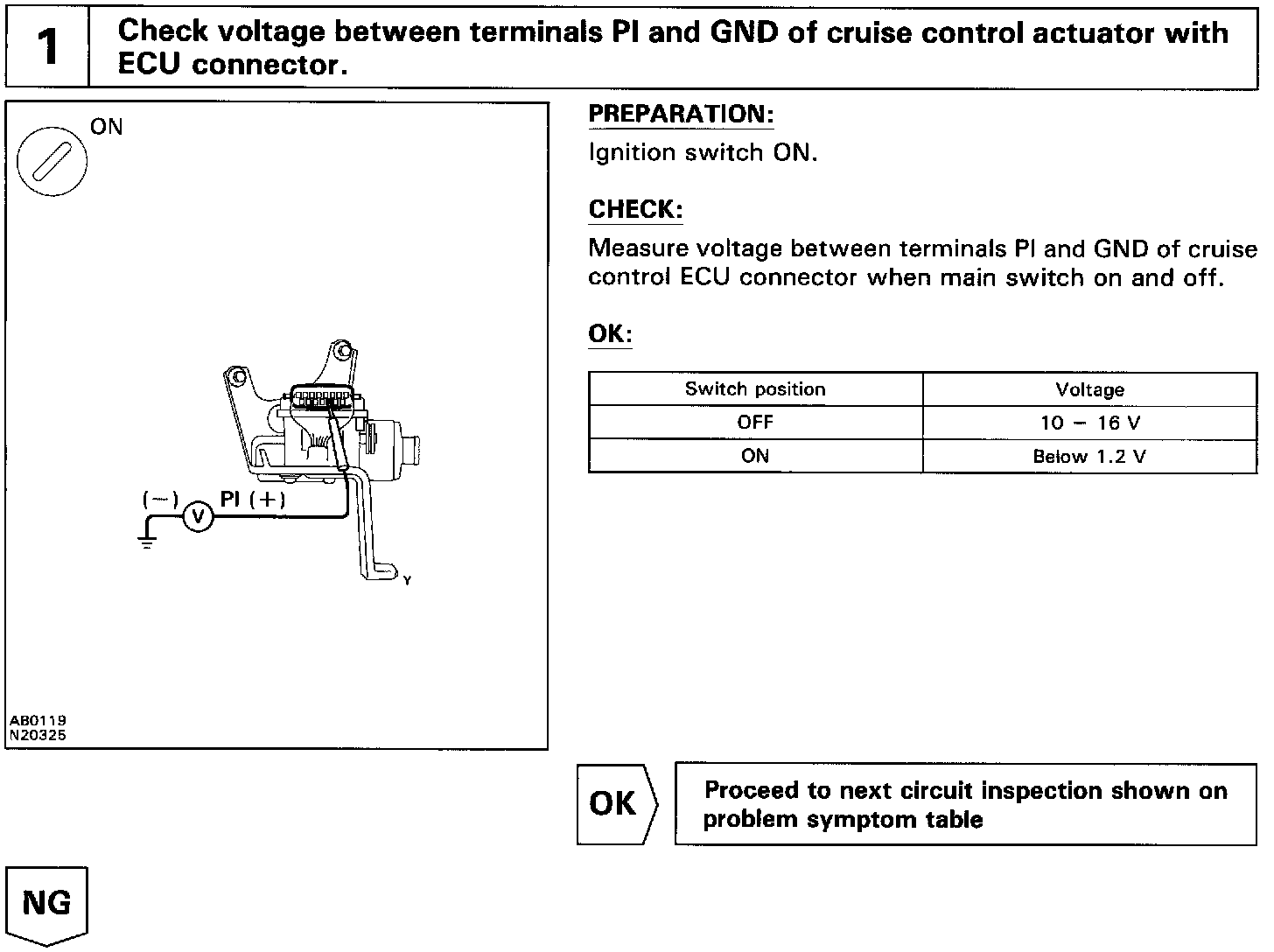

Cruise Main Indicator Circuit - Inspection Procedure (1 Of 2):

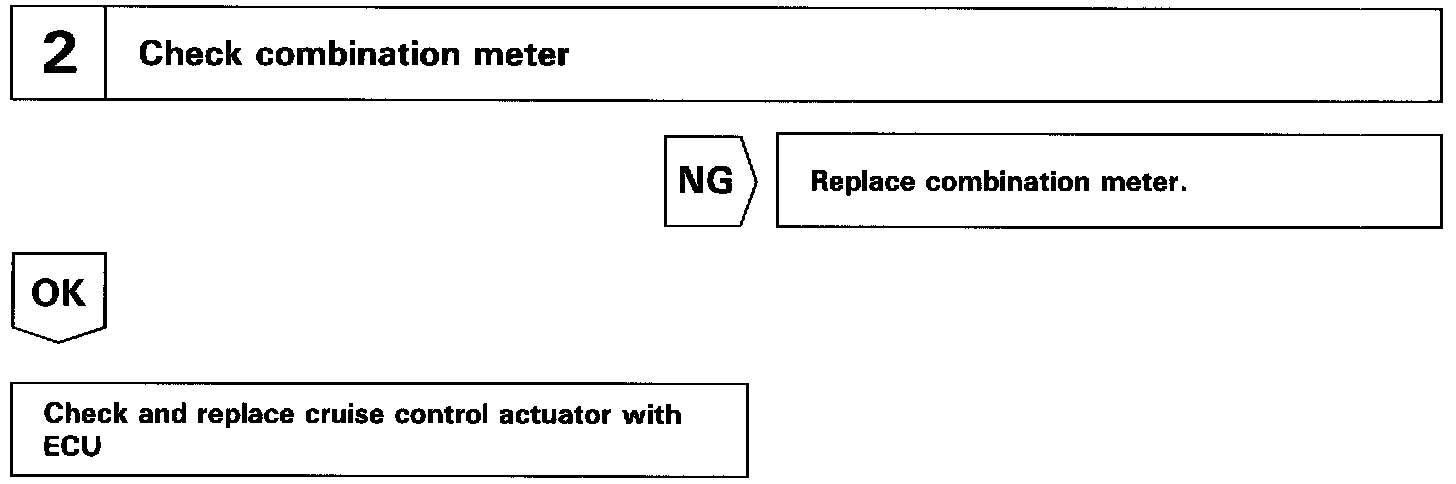

Cruise Main Indicator Circuit - Inspection Procedure (2 Of 2):






INSPECTION PROCEDURE
