Clutch Switch: Testing and Inspection

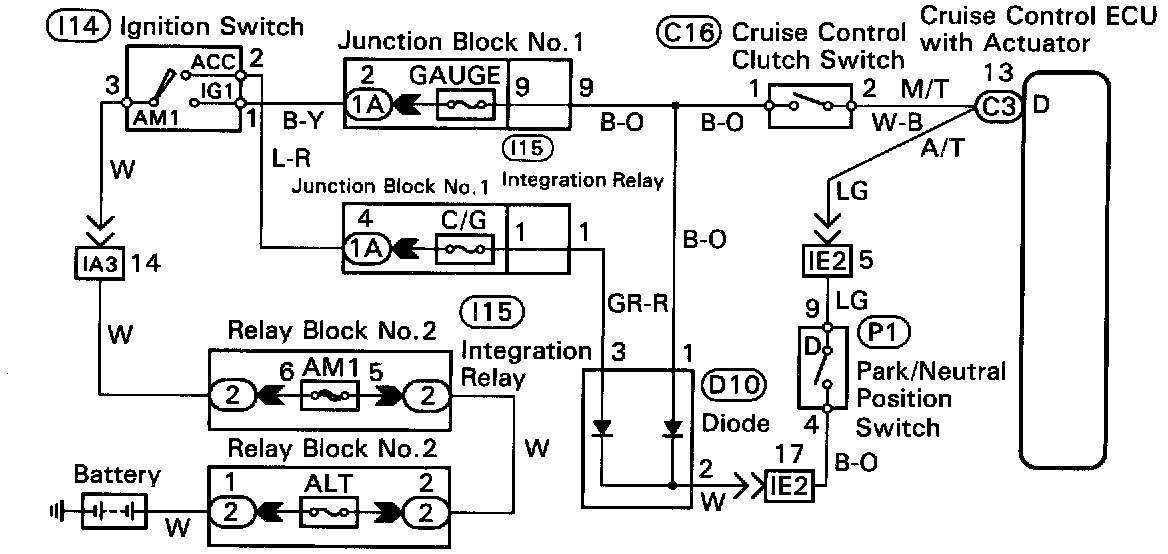

CLUTCH SWITCH CIRCUIT

Park / Neutral Position Switch - Clutch Switch:

CIRCUIT DESCRIPTION
When the clutch pedal is depressed, the clutch switch sends a signal to the cruise control ECU. When the signal is input to the cruise control ECU during cruise control driving, the cruise control ECU cancels cruise control.

Clutch Switch Circuit - Inspection Procedure (1 Of 4):

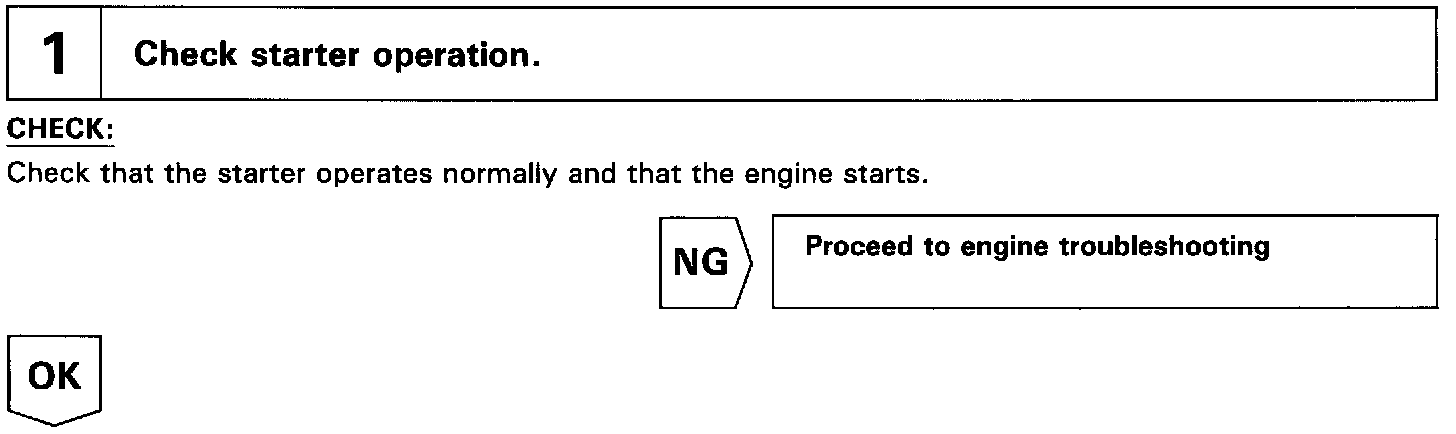

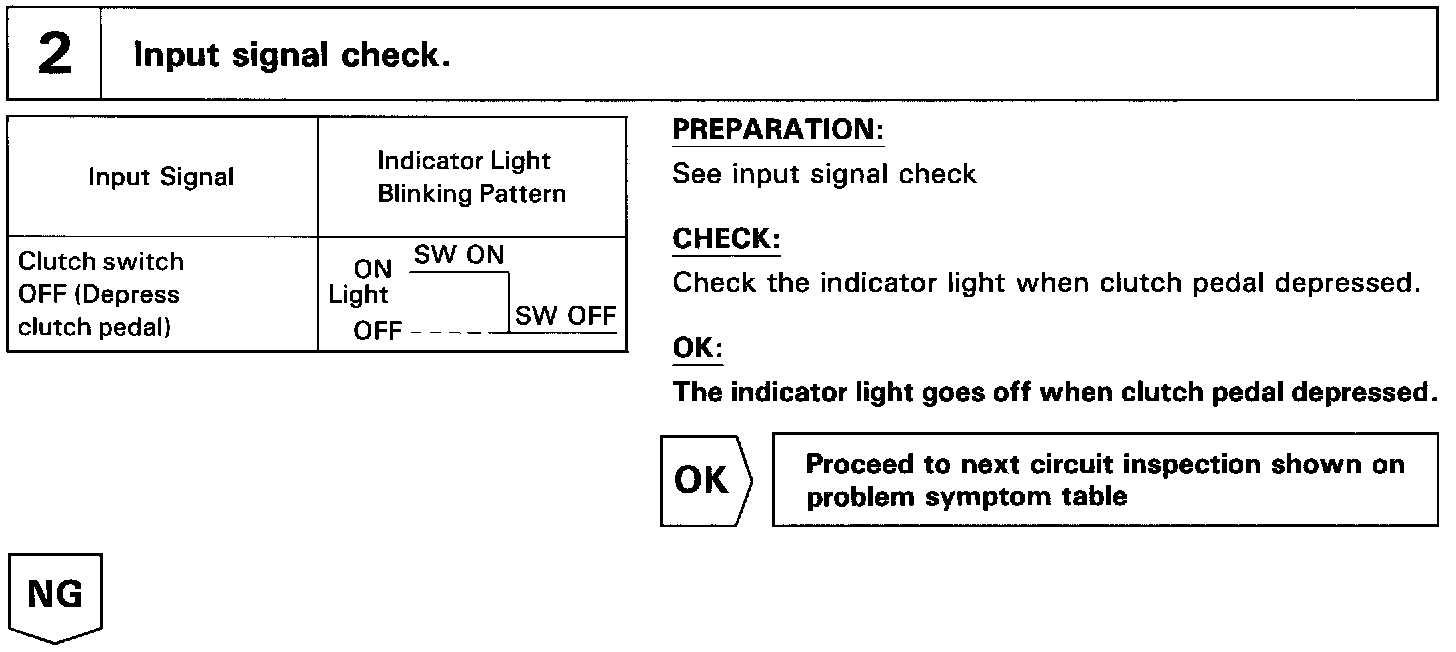

Clutch Switch Circuit - Inspection Procedure (2 Of 4):

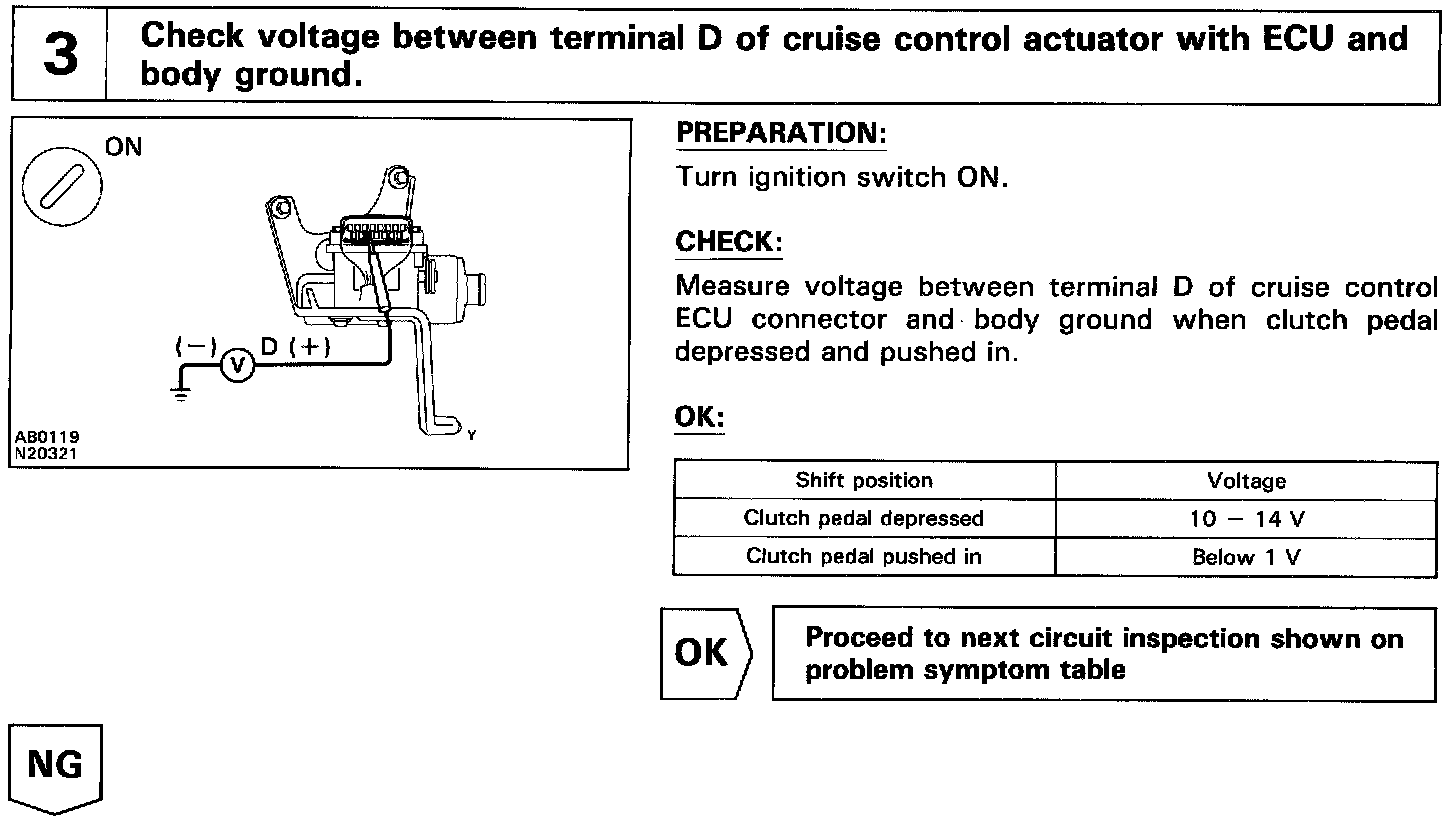

Clutch Switch Circuit - Inspection Procedure (3 Of 4):

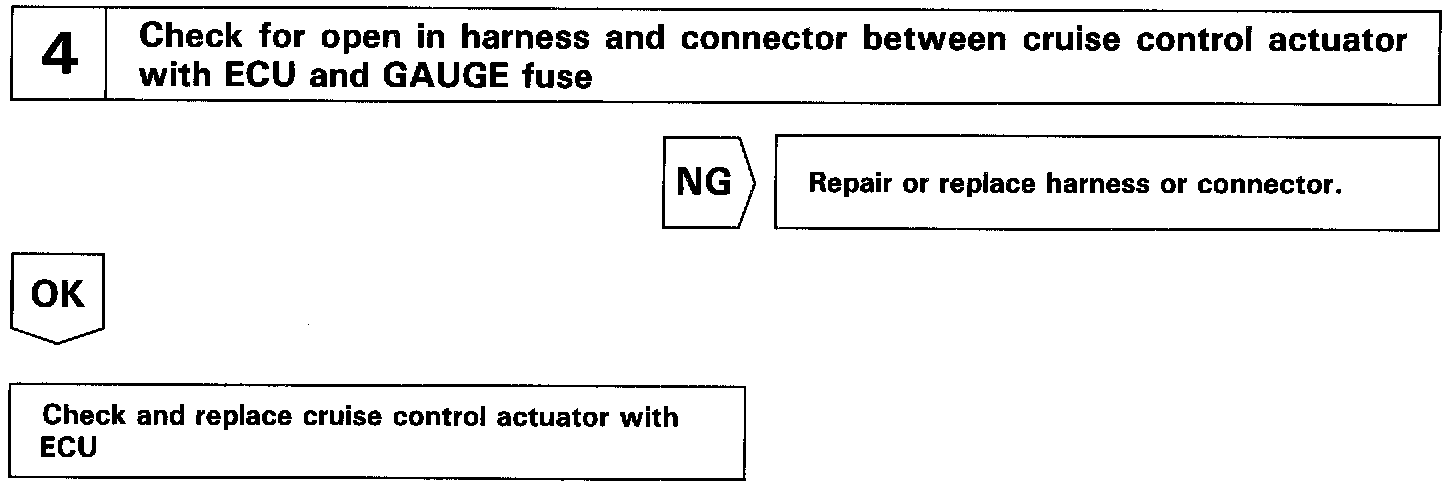

Clutch Switch Circuit - Inspection Procedure (4 Of 4):

INSPECTION PROCEDURE
