Rear

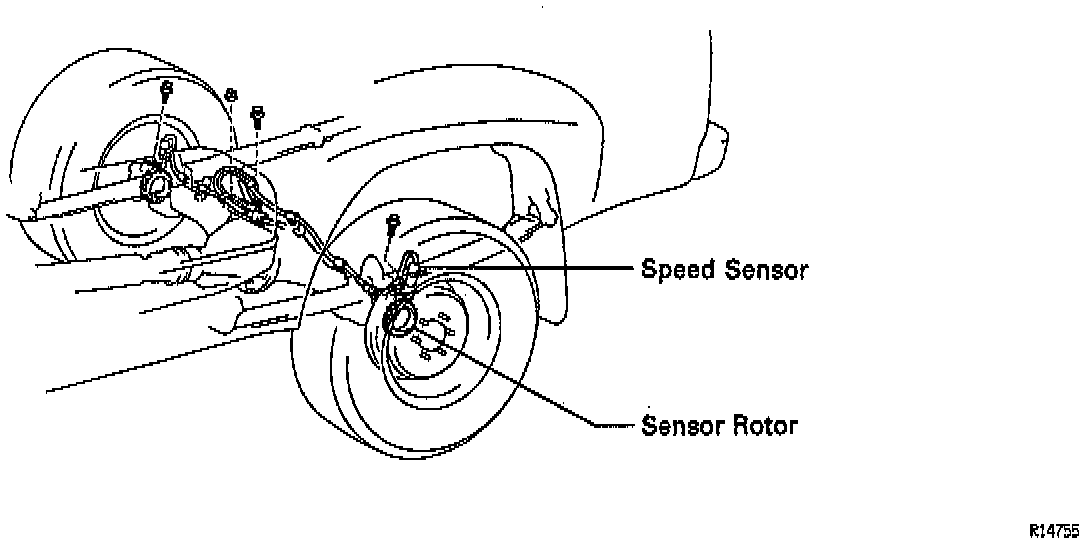

Rear Speed Sensor Components:

REMOVAL

Remove Speed Sensor:

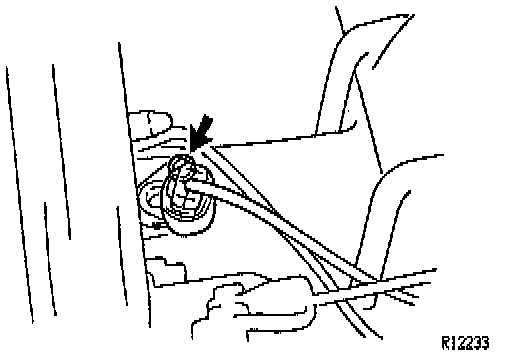

1. Disconnect speed sensor connector.
2. Remove speed sensor.
(a) Remove the clamp bolt, the clamp nut and the 5 clips holding the sensor wire harness from the axle and the fuel tank.

NOTE:
- In installing the rear sensor wire harness, never use the removed resin clips, resin clips are service parts.
- When replacing clips, set up new resin clips at the same angle of removed resin clips.
- When removing a resin clip, take care so that the removing tool is not caught on the grommet or wire.

(b) Remove the speed sensor from the axle carrier.
Torque: 13 Nm (9 ft. lbs.)

INSTALLATION
Installation is in the reverse order of removal.
After installation, check speed sensor signal.
