Front

Front Speed Sensor Components:

REMOVAL





1. Disconnect speed sensor connector.
2. Remove speed sensor.
(a) Remove the 2 clamp bolts holding the sensor harness from the frame and upper arm.
Torque: 5.0 Nm (44 inch lbs.)

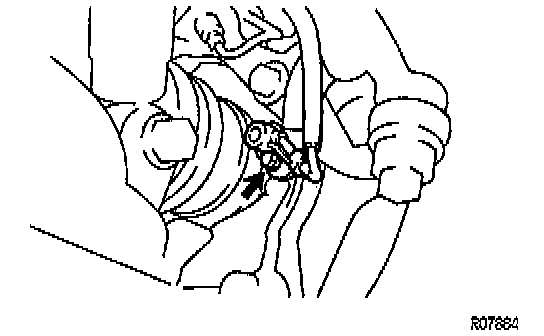

(b) Remove the speed sensor from the steering knuckle.
Torque: 8.0 Nm (71 inch lbs.)

INSTALLATION
Installation is in the reverse order of removal.
After installation, check speed sensor signal.
