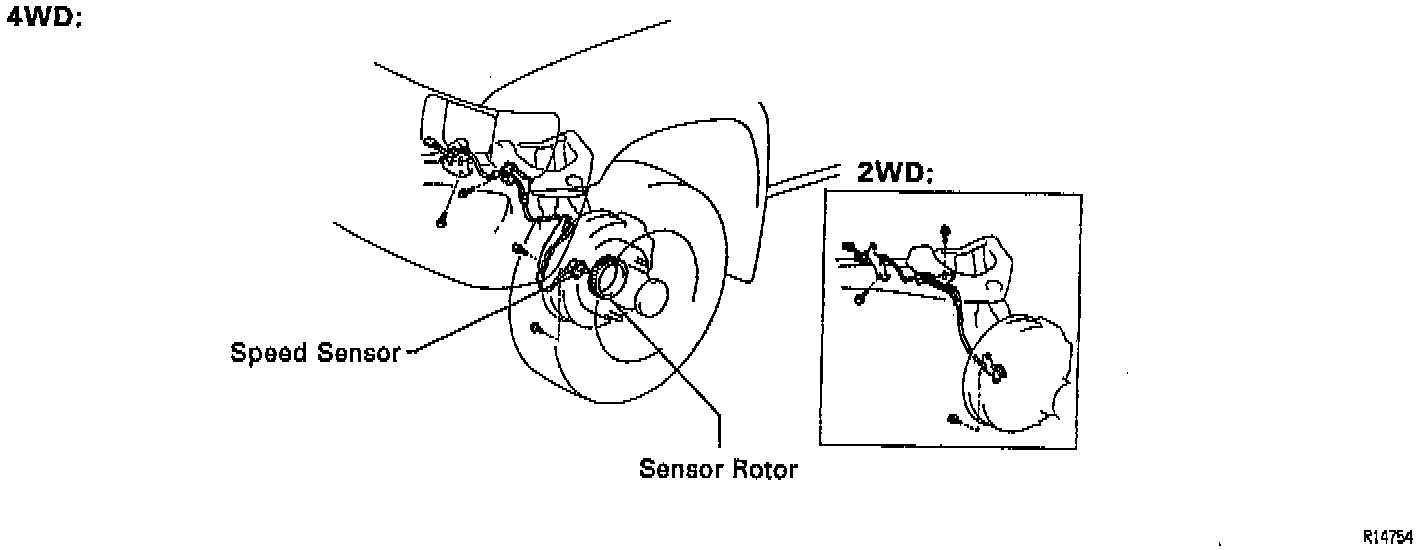

Front Speed Sensor Components:

INSPECTION
1. Inspect speed sensor.

Inspect Speed Sensor:

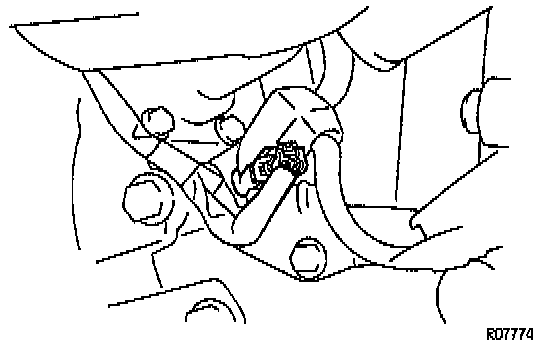

(a) Disconnect the speed sensor connector.

Speed Sensor:

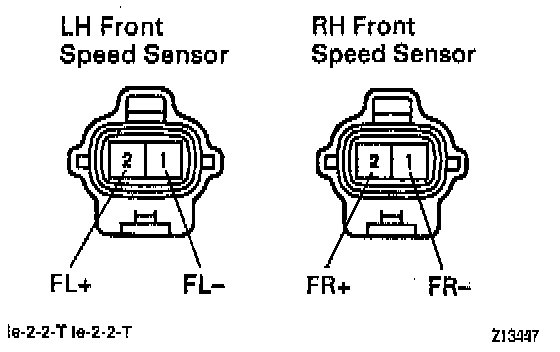

(b) Measure the resistance between terminals FR+ and FR- and FL+ and FL-.
Resistance: 0.6 - 1.8 k ohms.
If resistance value is not as specified, replace the sensor.

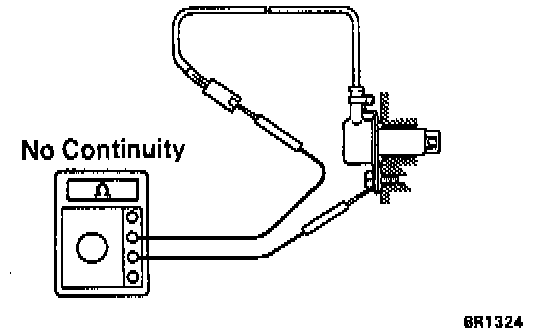

(c) Check there is no continuity between each terminal and sensor body.
If there is continuity, replace the sensor.
(d) Connect the speed sensor connector.

Inspect Sensor Installation:

2. Inspect sensor installation.

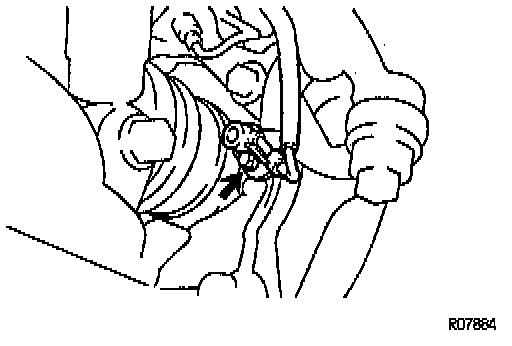

Check the sensor installation bolt is tightened properly. If not, tighten the bolt.
Torque: 8.0 Nm (71 inch lbs.)

Visually Inspect Sensor Rotor Serrations:

3. Visually inspect sensor rotor serrations.
(a) Remove the axle hub with disc.

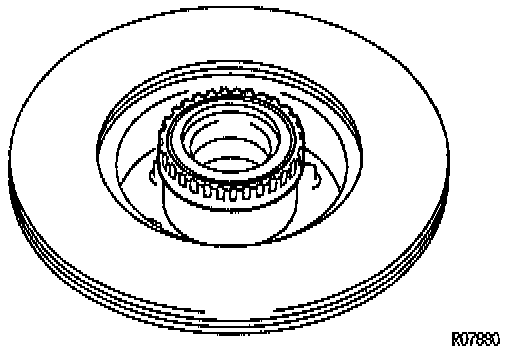

(b) Inspect the sensor rotor serrations for scratches, cracks, warping or missing teeth.
(c) Install the axle hub with disc.

CAUTION: To prevent damage to the serrations, do not strike the axle hub with disc.

4. Check speed sensor signal.
