Crankshaft Main Bearing

DIMENSIONS
Main Bearing Bolt Outside Diameter:
STD 10.76 - 10.97 mm (0.4236 - 0.4319 inch)
Maximum 10.40 mm (0.4094 inch)






TIGHTENING SPECIFICATIONS

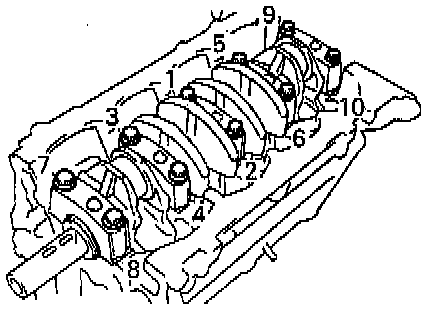

Main Bearing Cap To Cylinder Block:
1st Pass 39 Nm (29 ft. lbs.)
2nd Pass Turn additional 90°
