General Service Specifications

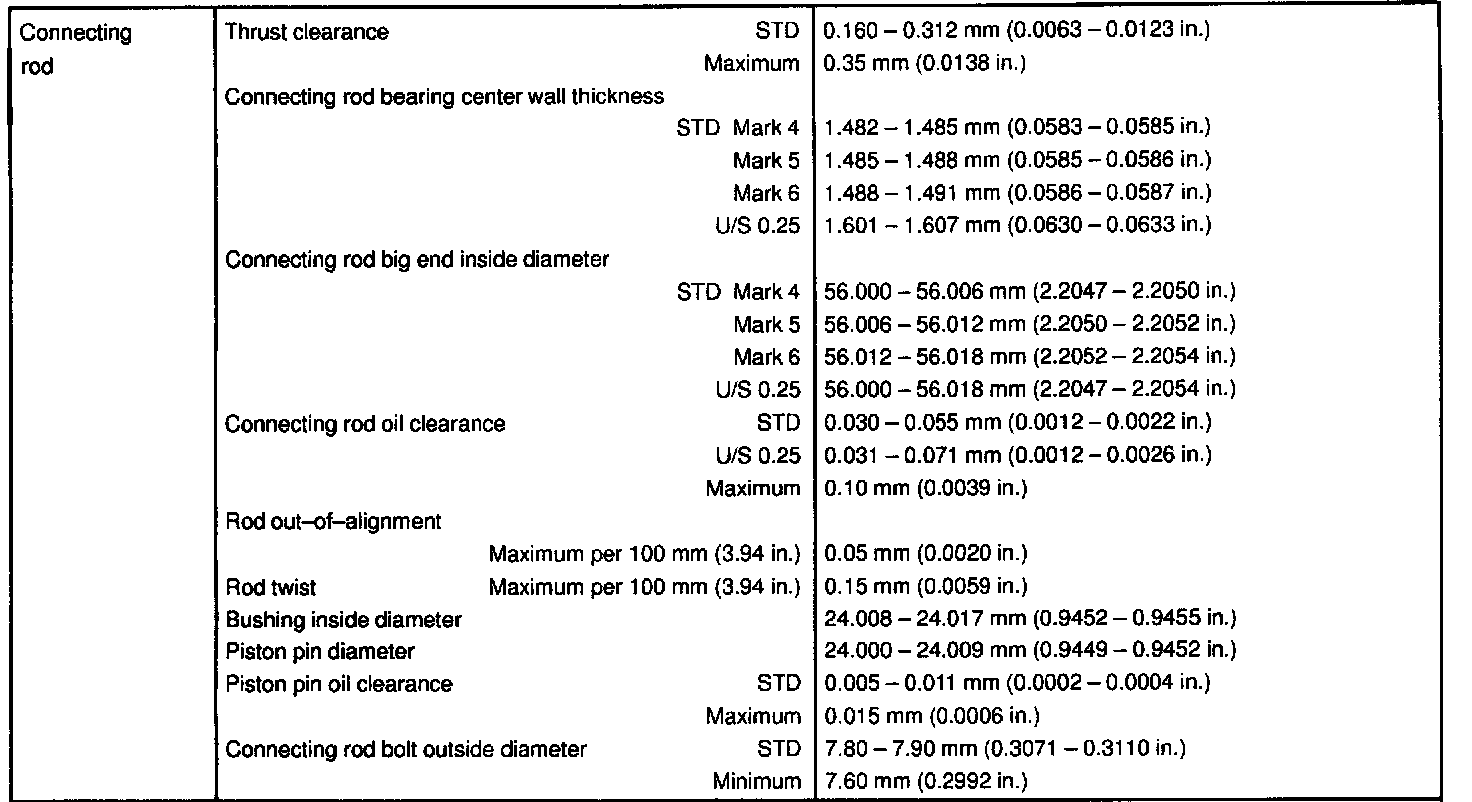

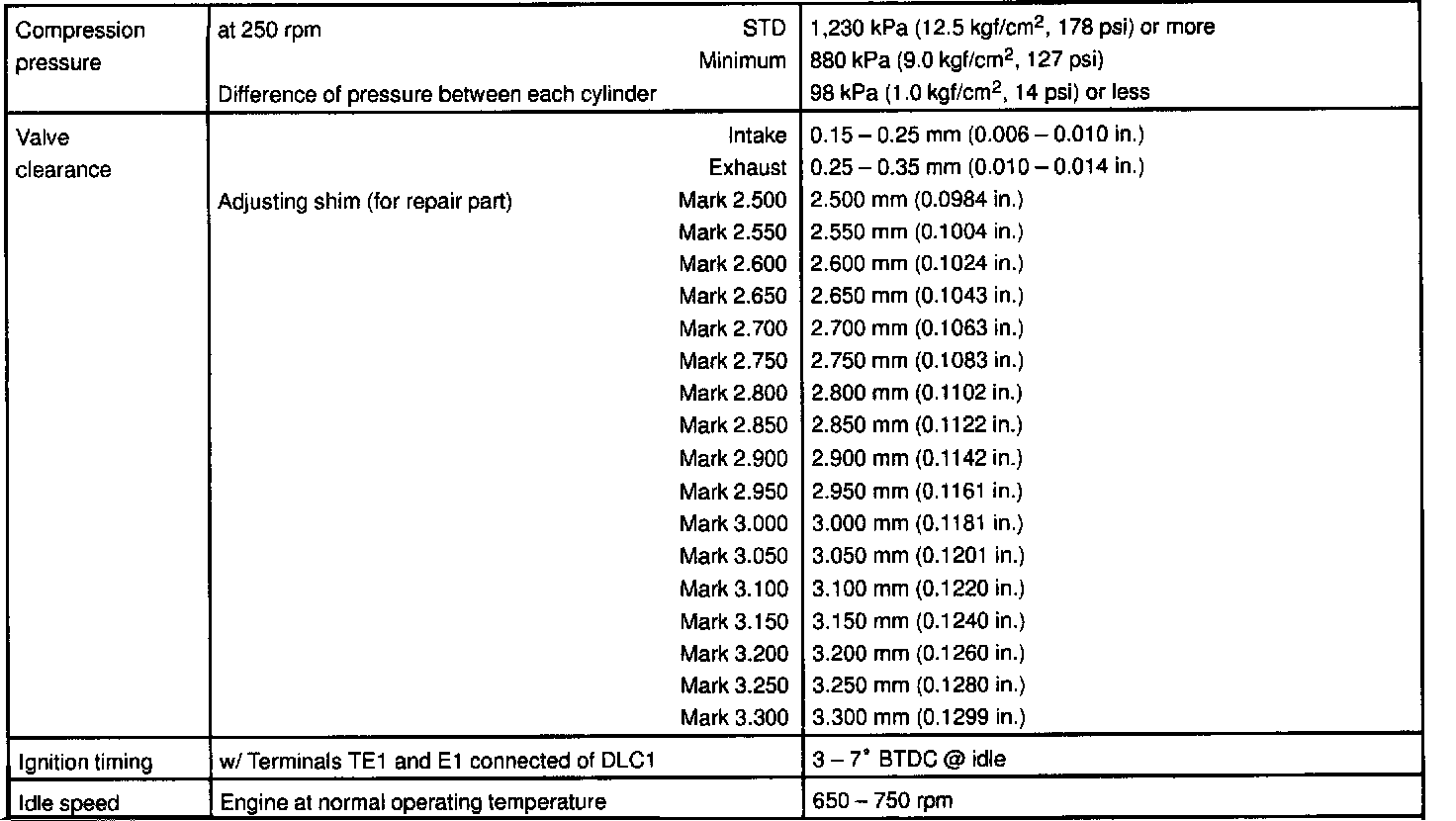

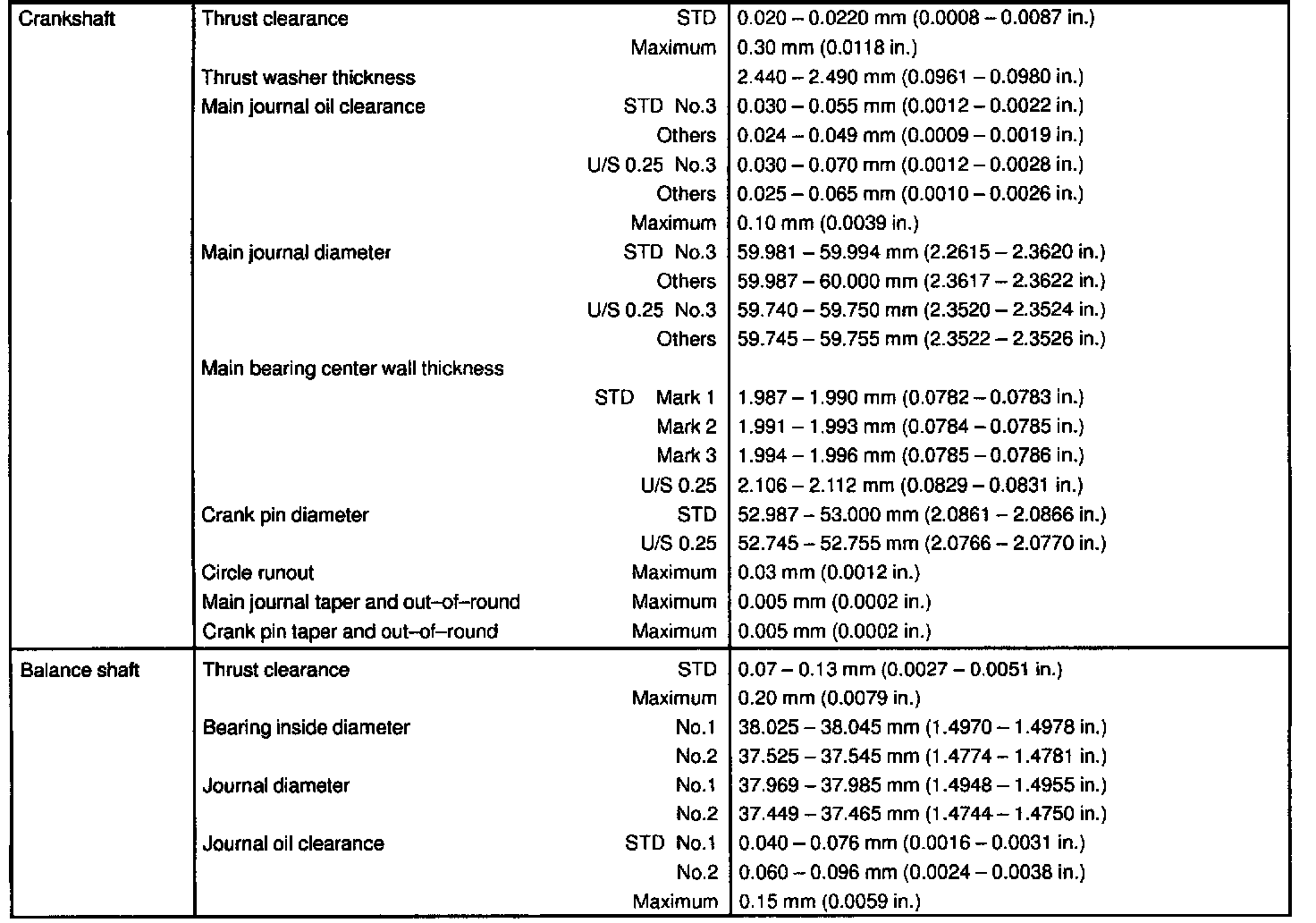

3RZ-FE Engine Mechanical Data:




3RZ-FE Engine Mechanical Cont.:





3RZ-FE Engine Mechanical Cont.:




3RZ-FE Engine Mechanical Cont.:





3RZ-FE Engine Mechanical Cont.:




3RZ-FE Engine Mechanical Cont.:
