Air Flow Meter/Sensor: Service and Repair

MAF METER REMOVAL





1. REMOVE AIR CLEANER CAP AND MAF METER
(a) Disconnect the MAF meter connector, IAT sensor connector and wire clamp.
(b) Loosen the air cleaner hose clamp.
(c) Loosen the 4 clips, and remove the air cleaner cap and MAF meter.
2. REMOVE MAF METER FROM AIR CLEANER CAP
(a) Remove the 4 nuts, MAF meter and gasket.

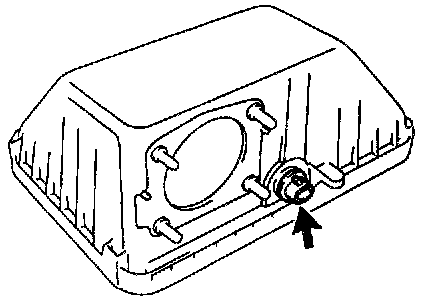

(b) Remove the IAT sensor from air cleaner cap.

MAF METER INSTALLATION

1. INSTALL MAF METER TO AIR CLEANER CAP
(a) Install the IAT sensor to the air cleaner cap.





(b) Place a new gasket on the air cleaner cap.
(c) Install the MAF meter with the 4 nuts.

Torque: 8.5 N.M (87 kgf.cm, 75 in.lbf)

2. INSTALL MAF METER AND AIR CLEANER CAP
