Starter Components Inspection

STARTER INSPECTION

Armature Coil







1. INSPECT COMMUTATOR FOR OPEN CIRCUIT
Using an ohmmeter, check that there is continuity between the segments of the commutator.

If there is no continuity between any segment, replace the armature.







2. INSPECT COMMUTATOR FOR GROUNDED
Using an ohmmeter, check that there is no continuity between the commutator and armature coil core. If there is continuity, replace the armature.


Commutator
1. INSPECT COMMUTATOR FOR DIRTY AND BURNT SURFACES
If the surface is dirty or burnt, clean it with sandpaper (No.400) or on a lathe.







2. INSPECT COMMUTATOR CIRCLE RUNOUT
a. Place the commutator on V-blocks.
b. Using a dial indicator, measure the circle runout.

Maximum circle runout: 0.05 mm (0.0020 in.)

If the circle runout is greater than maximum, correct it on a lathe.







3. INSPECT COMMUTATOR DIAMETER
Using vernier calipers, measure the commutator diameter.

Standard diameter:
1.2 kW, 1.4 kW type: 30 mm (1.18 in.)
1.8 kW type: 35 mm (1.38 in.)

Minimum diameter:
1.2 kW, 1.4 kW type: 29 mm (1.14 in.)
1.8 kW type: 34 mm (1.34 in.)

If the diameter is less than minimum, replace the armature.







4. INSPECT UNDERCUT DEPTH OF SEGMENT
Check that the undercut depth is clean and free of foreign material. Smooth out the edge.

Standard undercut depth:
1.2 kW, 1.4 kW type: 0.6 mm (0.024 in.)
1.8 kW type: 0.7 mm (0.028 in.)

Minimum undercut depth: 0.2 mm (0.008 in.)

If the undercut depth is less than minimum, correct it with a hacksaw blade.


Field Frame (Field Coil)







1. INSPECT FIELD COIL FOR OPEN CIRCUIT
Using an ohmmeter, check that there is continuity between the lead wire and field coil brush lead.

If there is no continuity, replace the field frame.







2. INSPECT THAT FIELD COIL IS NOT GROUNDED

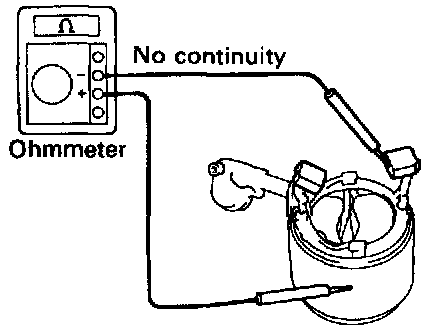

Using an ohmmeter. check that there is no continuity between the field coil end and field frame.

If there is continuity, repair or replace the field frame.







3. 1.8 kW type:
INSPECT SHUNT COIL FOR OPEN CIRCUIT

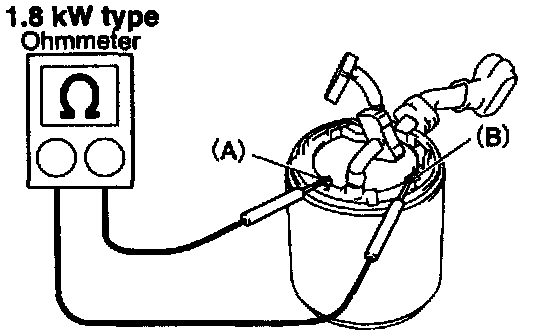

Using an ohmmeter. measure the resistance between shunt coil terminals (A) and (B).

Resistance:
1.5 - 1.9 Ohms at 20° C (68° F)

If the resistance is not as specified, replace the field frame.







Brushes
INSPECT BRUSH LENGTH
Using vernier calipers. measure the brush length.

Standard length:
1.2 kW, 1.4 kW type: 15.5 mm (0.610 in.)
1.8 kW type: 15.0 mm (0.591 in.)

Minimum length:
1.2 kW, 1.4 kW type: 10.0 mm (0.394 in.)
1.8 kW type: 9.0 mm (0.354 in.)

If the length is less than minimum, replace the brush holder and field frame.







Brush Springs
INSPECT BRUSH SPRING LOAD
Take the pull scale reading the instant the brush spring separates from the brush.

Standard installed load:
1.2 kW type: 13.7 - 19.6 N (1.40 - 2.00 kgf, 3.1 - 4.4 lbf)

1.4 kW type: 17.6 - 23.5 N (1.80 - 2.40 kgf, 4.0 - 5.3 lbf)

1.8 kW type: 21.5 - 27.5 N (2.20 - 2.80 kgf, 4.9 - 6.2 lbf)

Minimum installed load:
1.2 kW type: 9.8 N (1.00 kgf, 2.2 lbf)

1.4 kW type: 11.8 N (1.20 kgf, 2.6 lbf)

1.8 kW type: 12.7 N (1.30 kgf, 2.7 lbf)

If the installed load is less than minimum, replace the brush springs.

HINT: Take the pull scale reading the instant the brush spring separates from the brush.







Brush Holder
INSPECT INSULATION OF BRUSH HOLDER
Using an ohmmeter, check that there is no continuity between the positive (+) and negative (-) brush holders.

If there is continuity, repair or replace the brush holder.


Clutch and Gears
1. INSPECT GEAR TEETH
Check the gear teeth on the pinion gear, idler gear and clutch assembly for wear or damage.

If damaged, replace the gear or clutch assembly.

If damaged. also check the flywheel or drive plate ring gear for wear or damage.







2. INSPECT CLUTCH
Hold the starter clutch and rotate the clutch pinion gear clockwise and check that it turns freely. Try to rotate the clutch pinion counterclockwise and check that it locks. If necessary, replace the clutch assembly.


Bearings







1. INSPECT REAR BEARING

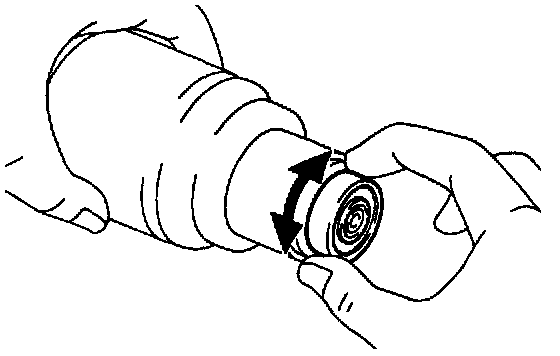

Turn each bearing by hand while applying inward force.

If the resistance is felt or if the bearing sticks, replace the bearing.

2. IF NECESSARY, REPLACE REAR BEARING







a. Using SST, remove the bearing.
SST 09286-46011







b. Using SST and a press, press in a new bearing.
SST 09201-41020







3. INSPECT FRONT BEARING
Turn each bearing by hand while applying inward force.

If the resistance is felt or if the bearing sticks. replace the bearing.


4. IF NECESSARY, REPLACE FRONT BEARING







a. Using SST, remove the bearing.
SST 09286-46011







b. Using SST and a press, press in a new bearing.
SST 09820-00030

NOTE: Be careful of the bearing installation direction.


Magnetic Switch







1. DO PULL-IN COIL OPEN CIRCUIT TEST

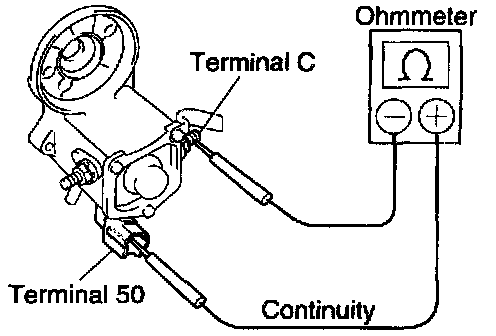

Using an ohmmeter, check that there is continuity between terminals 50 and C.

If there is no continuity, check and replace the magnetic switch.







2. DO HOLD-IN COIL CIRCUIT TEST
Using an ohmmeter, check that there is continuity between terminal 50 and the switch body.

If there is no continuity, replace the magnetic switch assembly.
