Blower Unit

BLOWER UNIT REMOVAL







1. REMOVE COOLING UNIT
Service and Repair

2. REMOVE BLOWER UNIT
a. Disconnect the connectors from the blower motor and the blower resistor.
b. Disconnect the air inlet damper control cable from the blower unit.

INSTALLATION HINT: For installing the control cable, refer to HEATER CONTROL CABLES ADJUSTMENT. Adjustments

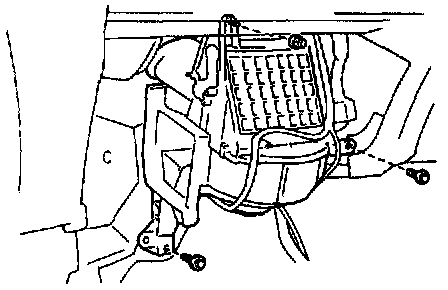

c. Remove the nut, 2 screws and the blower unit.

BLOWER UNIT INSTALLATION
Installation is in the reverse order of removal.
