Air Conditioning Switch: Testing and Inspection

A/C SWITCH INSPECTION

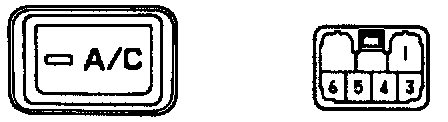

INSPECT A/C SWITCH CONTINUITY

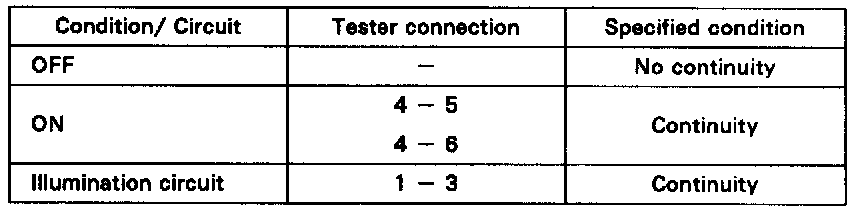

Switch continuity:
If continuity is not as specified, replace the switch.

Illumination circuit:
If continuity is not as specified, replace the bulb.
