RAV4 4-Door 4WD L4-2.0L (3S-FE)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Automatic Transmission/Transaxle
>>
System Specifications
>>
Automatic Transmission/Transaxle
>>
A/T Technical Data
>>

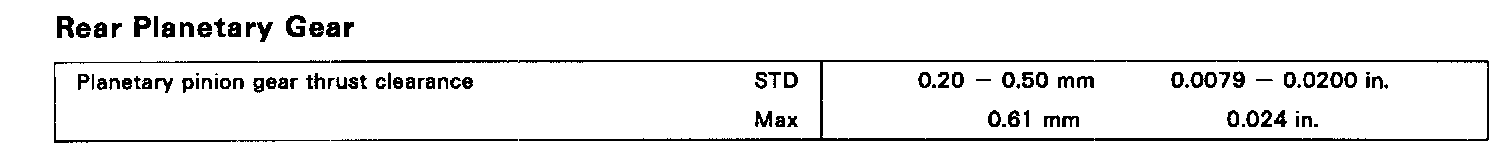

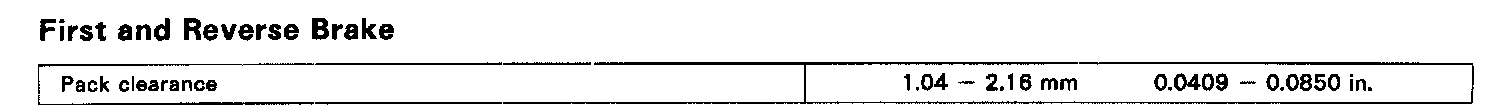

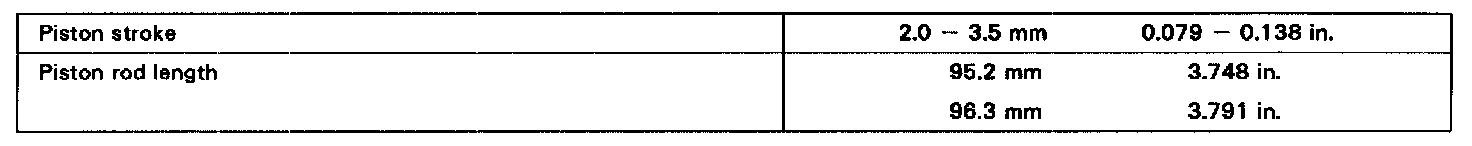

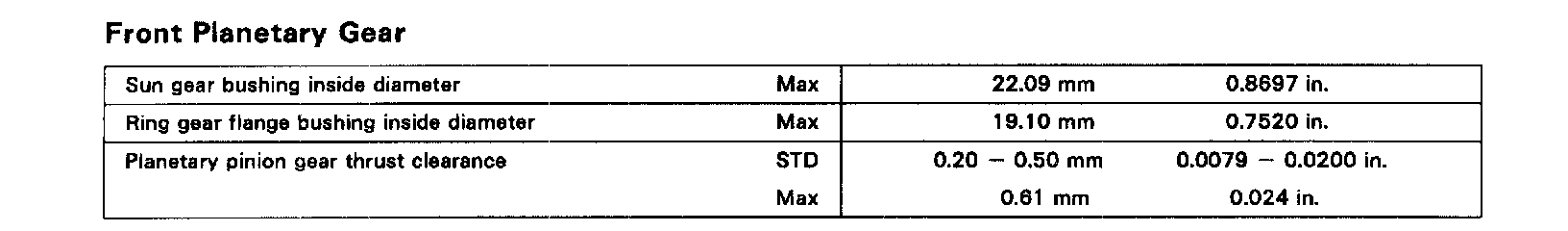

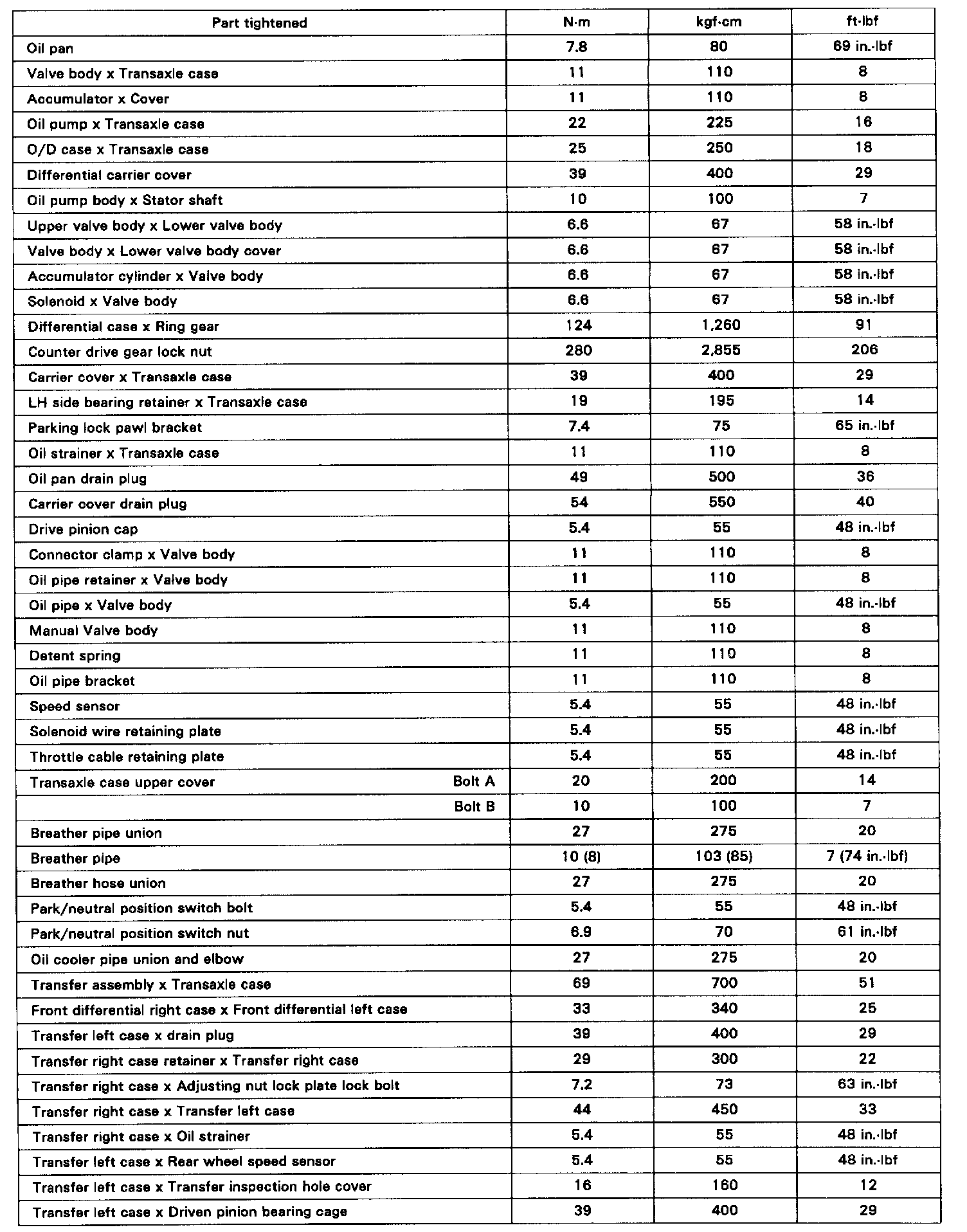

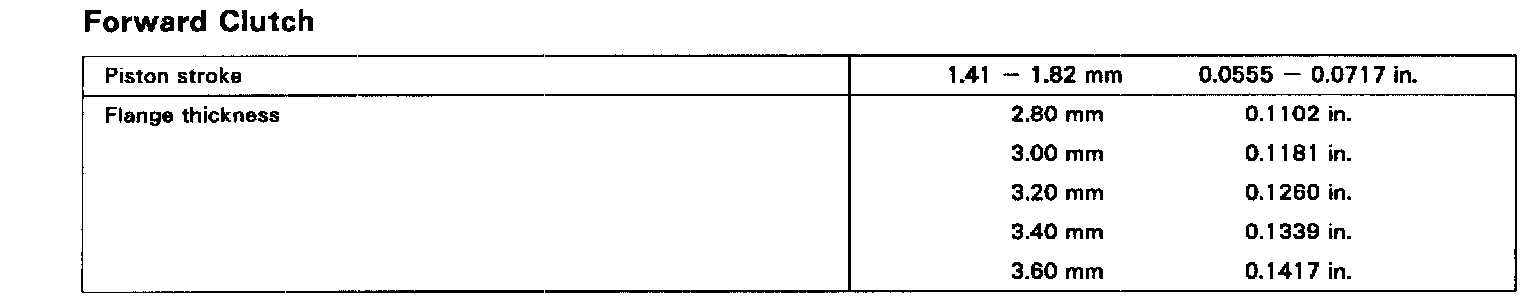

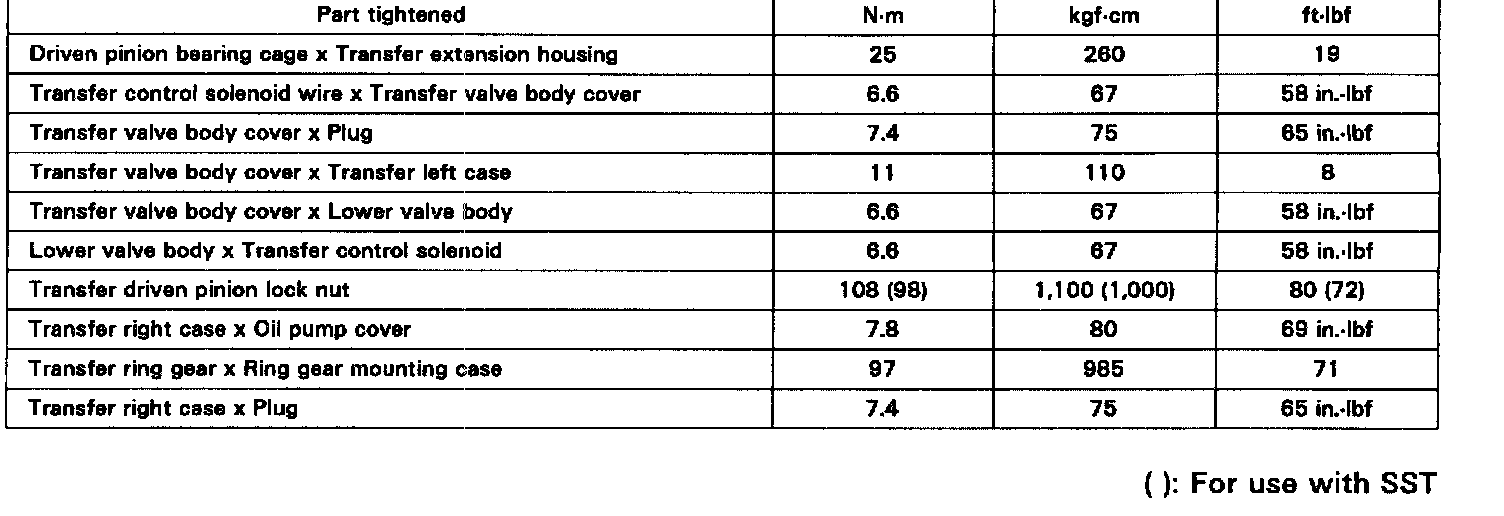

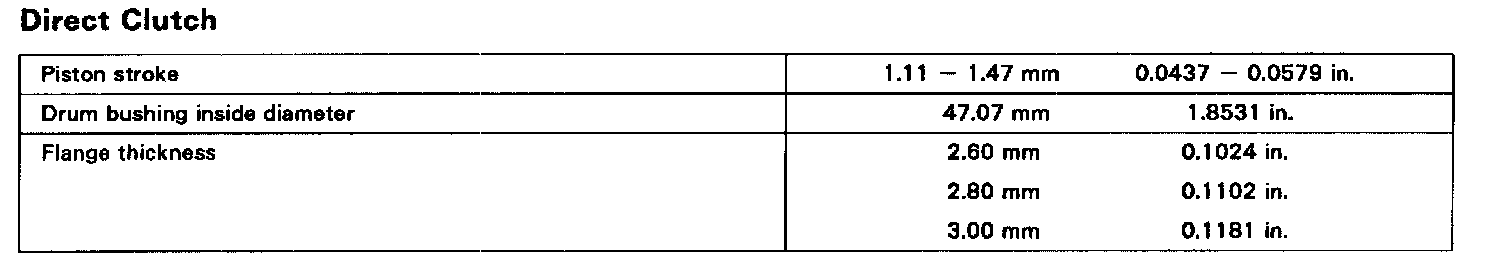

Service Specifications
Service Specifications
Page 1 Of 2:
Page 2 Of 2:
Page 1 Of 2:
Page 2 Of 2:
Page 1 Of 2:
Page 2 Of 2:
Service Data
