Toyota Truck
>>
1997
>>
RAV4 4-Door 4WD L4-2.0L (3S-FE)
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Problem Symptom Table
Problem Symptom Table

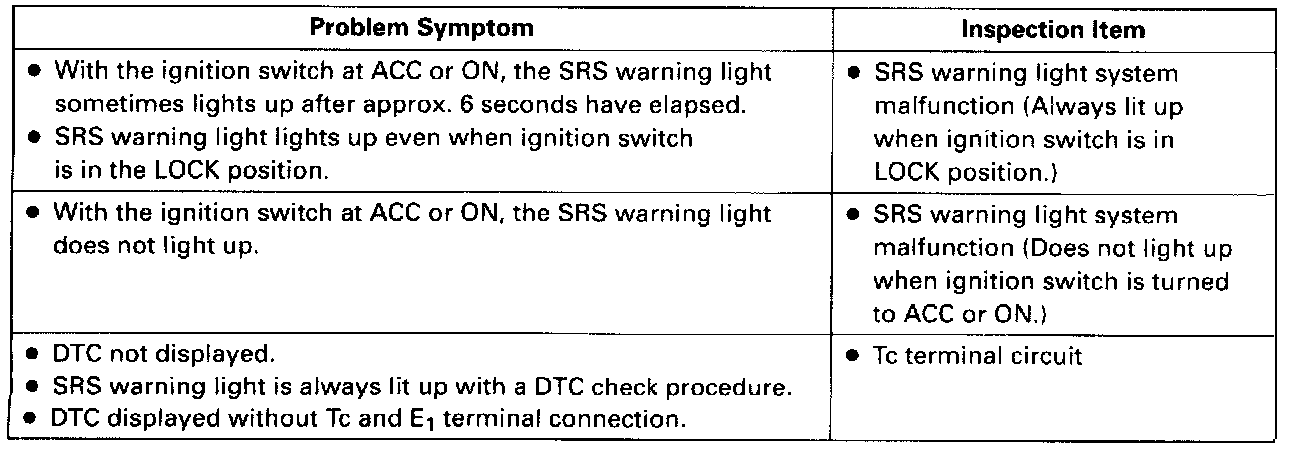

Problem Symptom Chart:
Proceed with troubleshooting of each circuit in the table above.
