Transmission Position Sensor/Switch: Service and Repair
PARK/NEUTRAL POSITION SWITCH REPLACEMENT1. Remove No.2 engine under cover.

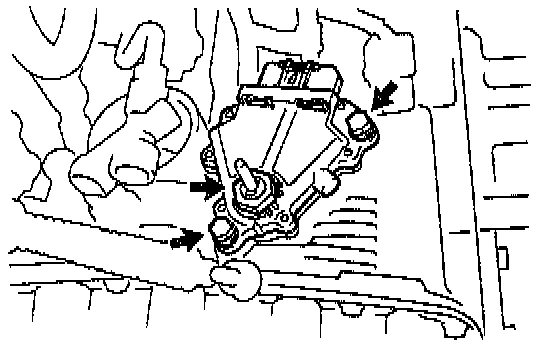

2. Disconnect park/neutral position switch connector.
3. Remove park/neutral position switch.

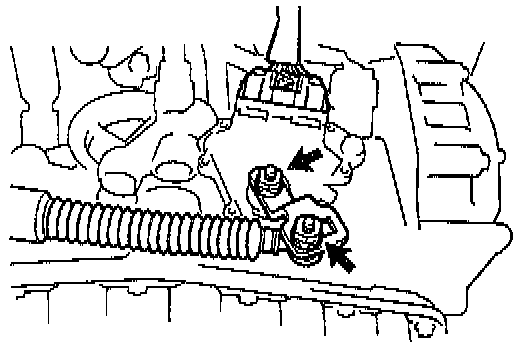

a. Remove the nut and disconnect the shift control lever.
b. Remove the nut and shift control
c. Using a screwdriver, pry off the lock plate.
d. remove the nut and lock plate.
e. Remove the 2 bolts and pull out the park/neutral position switch.
4. Install and adjust park/neutral position switch.
a. Install the park/neutral position switch to the manual valve shaft with the 2 bolts and nut.
b. Install a new lock plate and tighten the nut.
Torque: 6.9 N.m (61 inch lbs.)
c. Stake the nut with the lock plate.
d. Temporarily install the manual shaft lever.

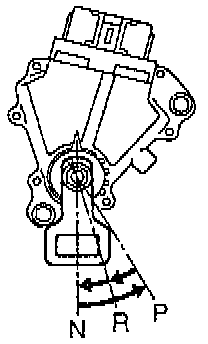

e. Turn the lever counterclockwise until it stops, then turn it clockwise 2 notches.
f. Remove the control shaft lever.
g. Adjust the park/neutral position switch.

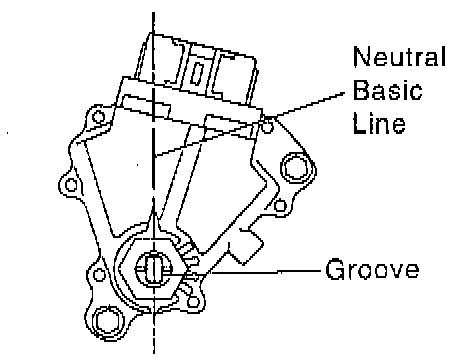

- Align the groove and park/neutral basic line.
h. Tighten the 2 bolts.
Torque: 5.4 N.m (48 inch lbs.)
i. Install the shift control lever with the nut.
Torque: 12.7 N.m (9 ft. lbs.)
j. Connect the control cable with the nut.
5. Connect park/neutral position switch connector.
6. Install No.2 engine under cover.
