Toyota Truck
>>
1997
>>
RAV4 2-Door 4WD L4-2.0L (3S-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>

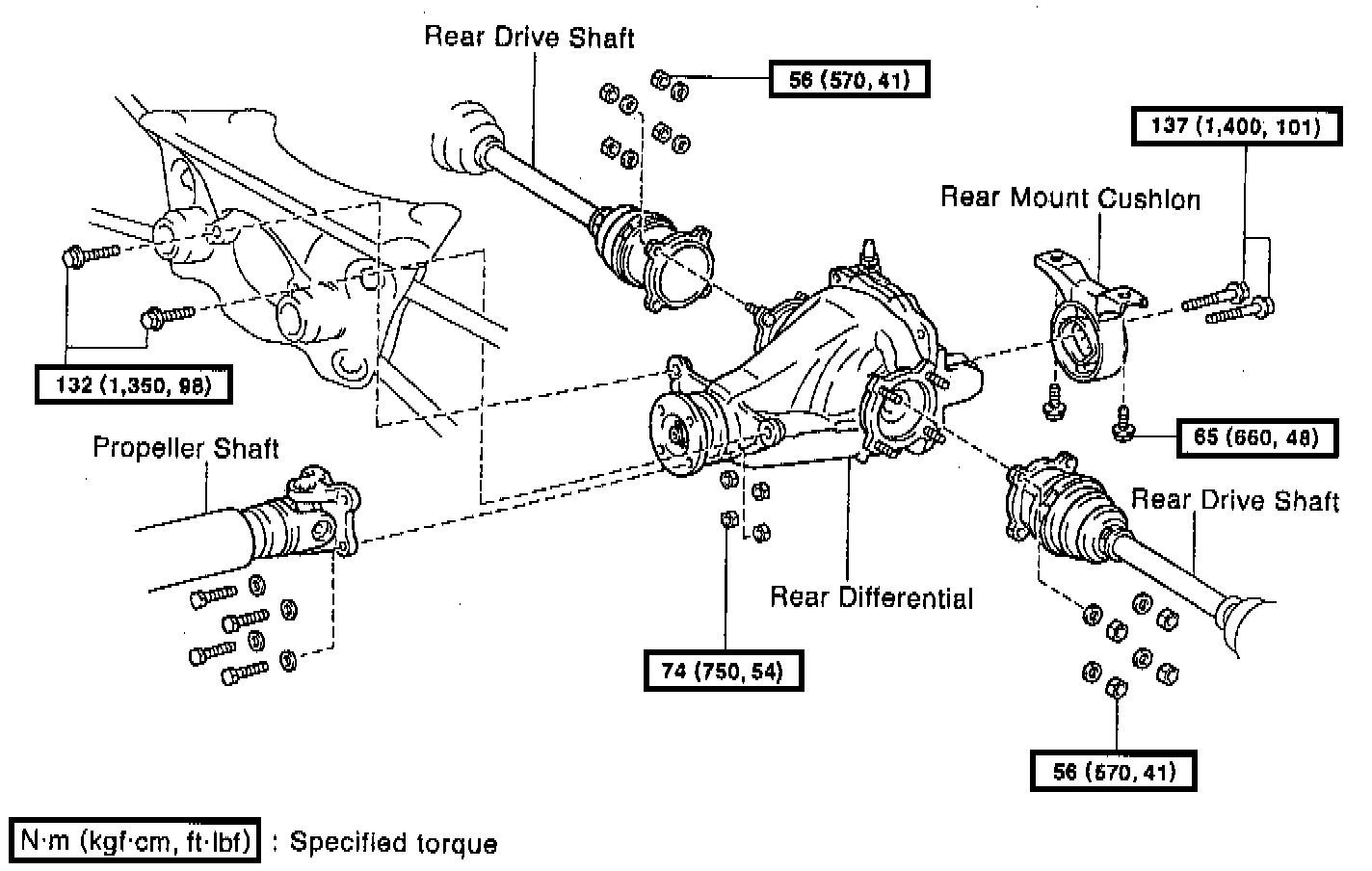

Exploded Views
>>
Differential Assembly
>>
Rear Differential Replacement
Rear Differential Replacement
Rear Differential Removal:
