Home >> Toyota Truck >> 1997 >> RAV4 2-Door 4WD L4-2.0L (3S-FE) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Diagnostic Trouble Code Descriptions >> Engine Control System >> P Codes

P Codes

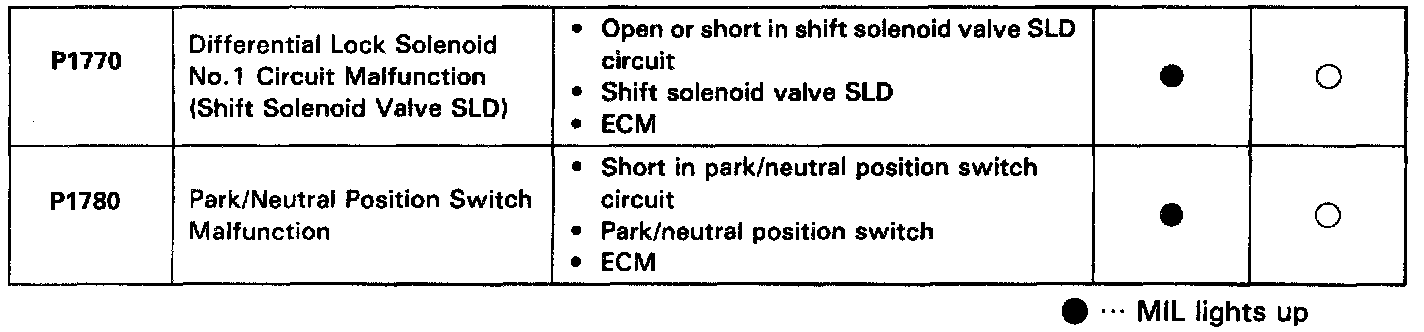

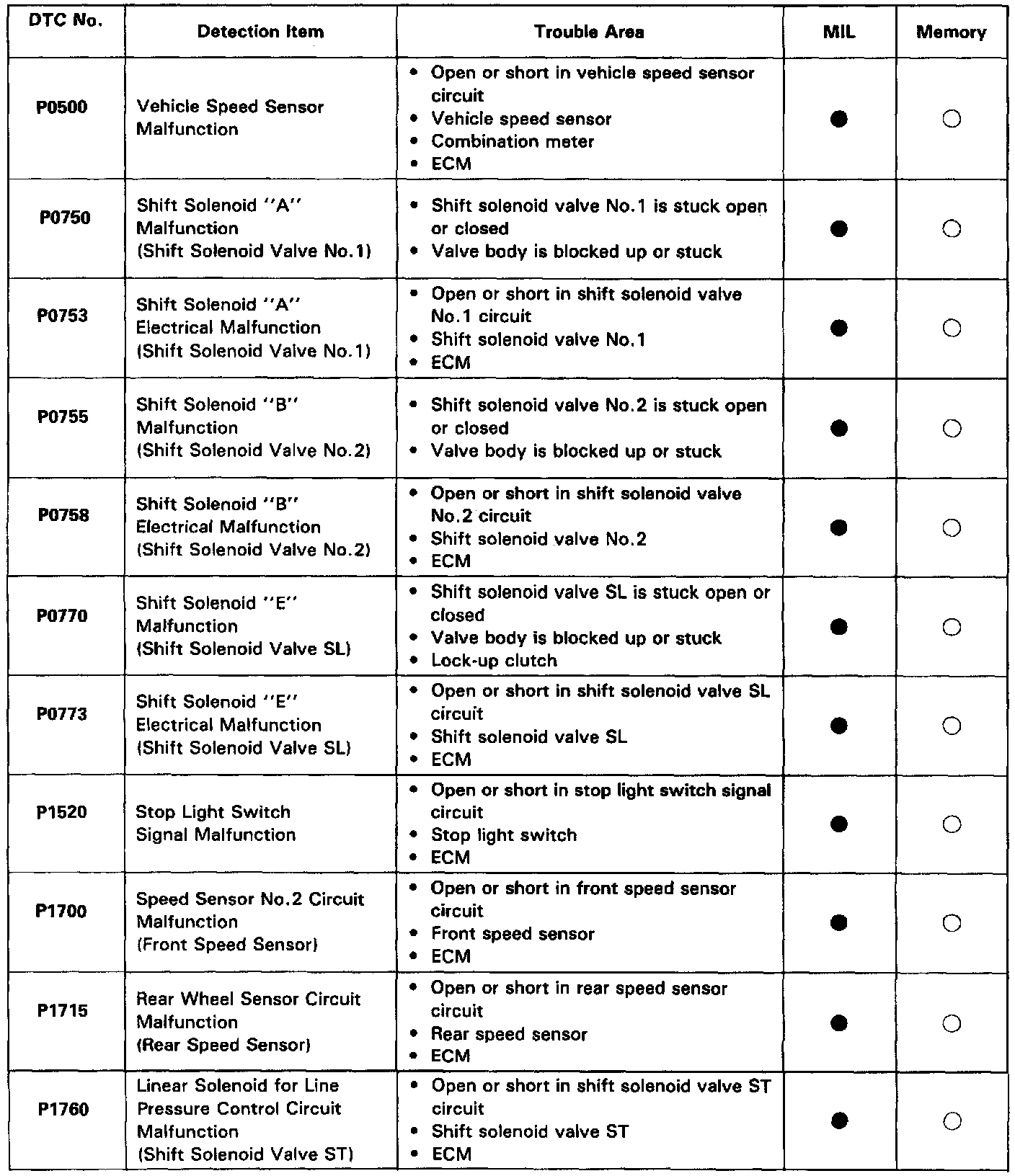

Trouble Code Descriptions Chart 1 Of 2:



Trouble Code Descriptions Chart 2 Of 2:



SAE Controlled Trouble Code Descriptions Chart 1 Of 4:



SAE Controlled Trouble Code Descriptions Chart 2 Of 4:



SAE Controlled Trouble Code Descriptions Chart 3 Of 4:



SAE Controlled Trouble Code Descriptions Chart 4 Of 4:
