Removal and Installation

Starter:

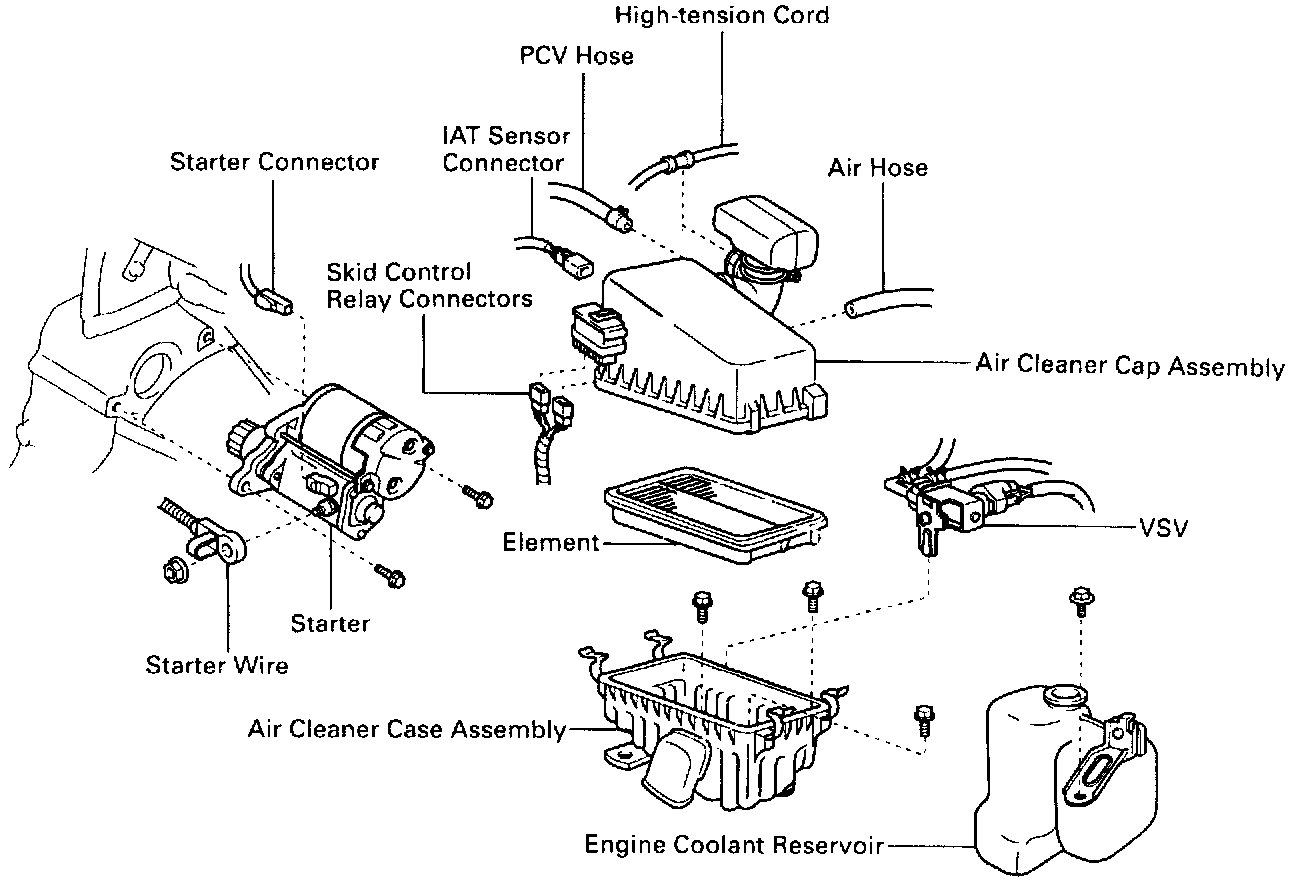

STARTER REMOVAL







1. REMOVE ENGINE COOLANT RESERVOIR


2. REMOVE AIR CLEANER CAP ASSEMBLY
a. Disconnect these hoses, cord and connectors:
- Skid control relay connectors
- High-tension cord from the air cleaner hose and resonator
- IAT sensor connector
- PCV hose from the air cleaner hose
- Air hose from the air cleaner cap assembly

b. Disconnect the 4 clamps and air cleaner cap assembly from the air cleaner case assembly.
c. Loosen the hose clamp, and disconnect the air cleaner hose from the throttle body.
d. Remove the air cleaner cap assembly.

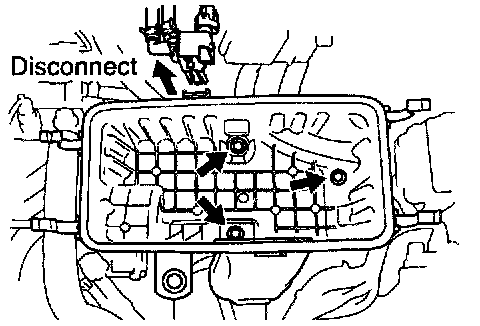

3. REMOVE AIR CLEANER CASE ASSEMBLY
a. Disconnect the VSV from the air cleaner case assembly.
b. Remove the 3 bolts and air cleaner case assembly.

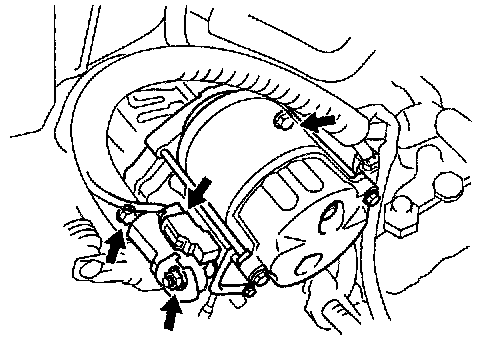

4. REMOVE STARTER
a. Disconnect the starter connector.
b. Remove the nut, and disconnect the starter wire.
c. Remove the 2 bolts and starter.

Torque: 39 N.m (400 kg.cm, 29 ft.lb)


STARTER INSTALLATION
Installation is in reverse order of removal.
