Disassembly and Reassembly

Starter Motor / Exploded View:

STARTER DISASSEMBLY







1. REMOVE DUST PROTECTOR


2. REMOVE FIELD FRAME AND ARMATURE

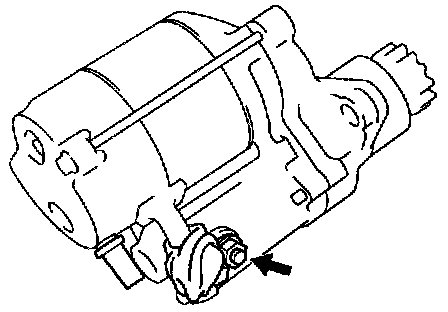

a. Remove the nut. and disconnect the lead wire from the magnetic switch terminal.

Torque: 5.9 N.m (60 kg.cm. 52 in.lb)

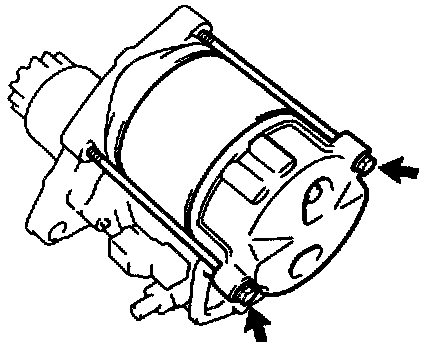

b. Remove the 2 through bolts.

Torque: 5.9 N.m (60 kg.cm. 52 in.lb)

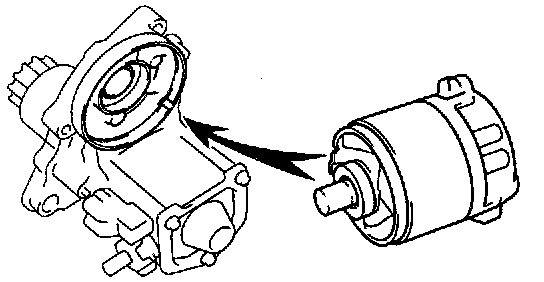

c. Pull out the field frame together with the armature

ASSEMBLY NOTE: Align the protrusion of the field frame with the groove of the magnetic switch.

d. Remove the O-ring from the field frame.

ASSEMBLY HINT: Use a new O-ring.







3. REMOVE STARTER HOUSING, CLUTCH ASSEMBLY AND GEAR

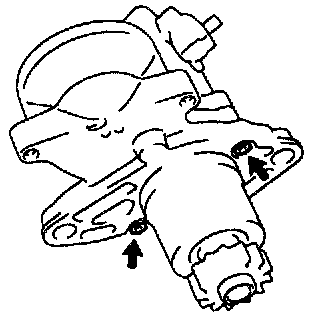

a. Remove the 2 screws.

Torque: 5.9 N.m (60 kg.cm, 52 in.lb)







b. Remove these parts from the magnetic switch:

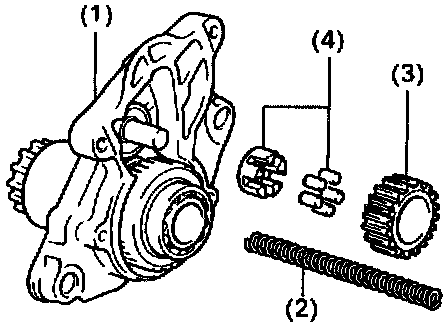

- Starter housing and clutch assembly
- Return spring
- Idler gear
- Bearing







4. REMOVE STEEL BALL

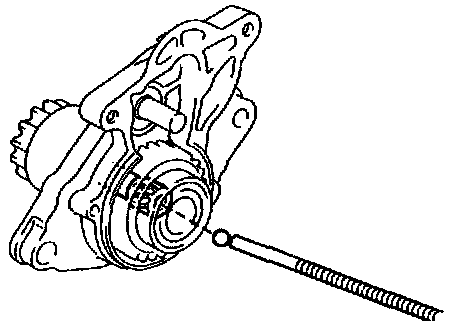

Using a magnetic finger, remove the steel ball from the clutch shaft hole.

5. REMOVE BRUSH HOLDER

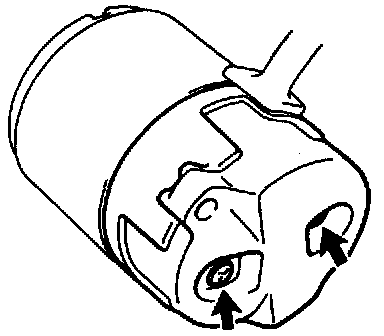

a. Remove the 2 screws and end cover from the field frame.

Torque: 1.5 N.m (15 kg.cm, 13 in.lb)

b. Remove the O-ring from the field frame.

ASSEMBLY HINT: Use a new O-ring.

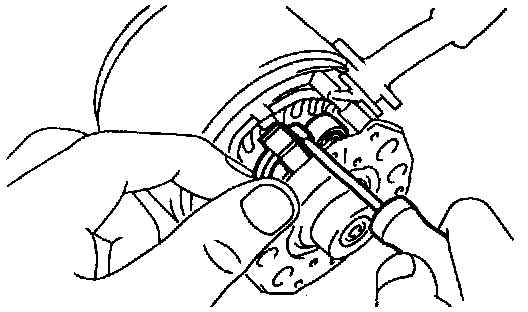

c. Using a screwdriver, hold the spring back and disconnect the brush from the brush holder. Disconnect the 4 brushes, and remove the brush holder.

ASSEMBLY NOTE: Check that the positive (+) lead wires are not grounded.

6. REMOVE ARMATURE FROM FIELD FRAME


STARTER ASSEMBLY
Assembly is in the reverse order of disassembly.

HINT: Use high-temperature grease to lubricate the bearings, springs, steel ball and gears when assembling the starter.
