Component Tests and General Diagnostics

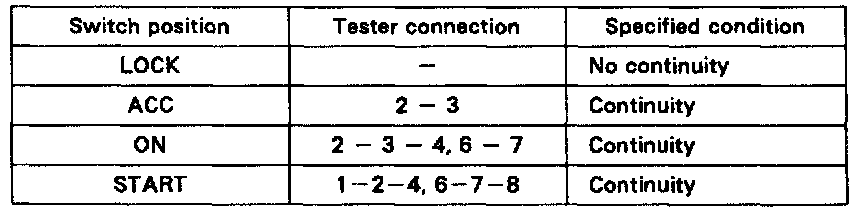

INSPECT IGNITION SWITCH CONTINUITY







If continuity is not as specified, replace the switch.
