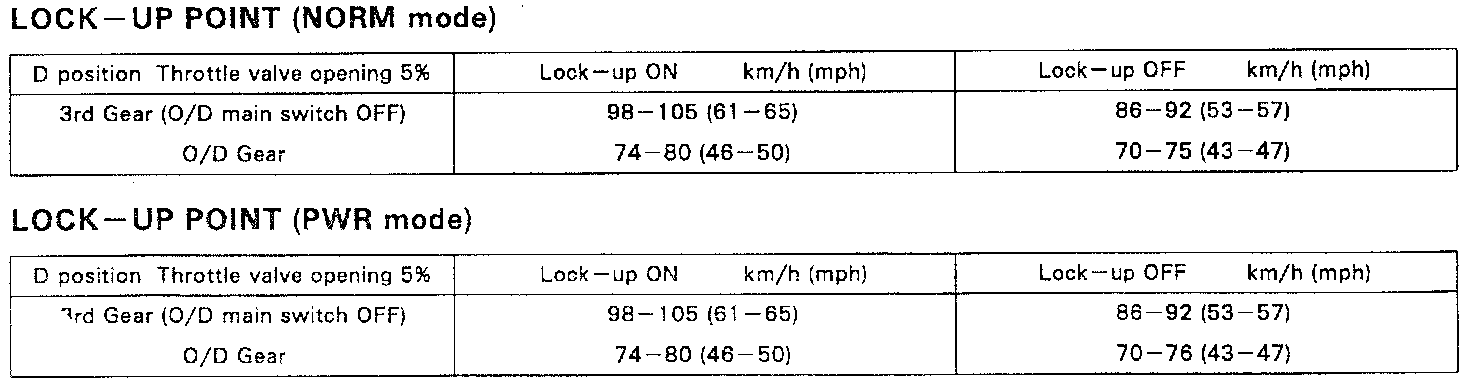

Lock-Up Point

HINT:
- In the 2 and L positions, all stages lock-up is OFF.
- In the following cases, the lock-up will be released regardless of the lock-up pattern.
- When the throttle is completely closed.
- When the brake light switch is ON.
- Shift up to O/D will not occur when the water temp. is below 53°C (127°F).
- 3rd lock-up is not engaged when O/D main switch is ON.
