Component Inspection

IAC VALVE INSPECTION

INSPECT IAC VALVE OPERATION





(a) Connect the positive (+) lead from the battery to terminal +B and negative (-) lead to terminal RSC. and check that the valve is closed.

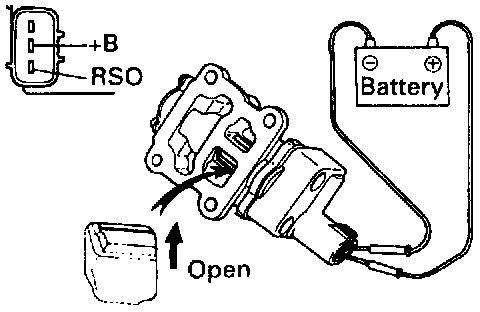

(b) Connect the positive (+) lead from the battery to terminal +B and negative (-) lead to terminal RSO, and check that the valve is open.
