Idle Speed/Throttle Actuator - Electronic: Service and Repair

COMPONENTS FOR REMOVAL AND INSTALLATION

IAC VALVE REMOVAL
1. REMOVE THROTTLE BODY





2. REMOVE IAC VALVE

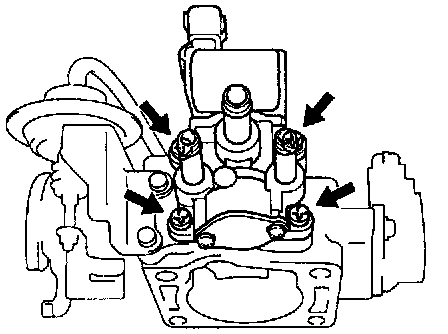

Remove the 4 screws, IAC valve and gasket.

INSTALLATION HINT: Place a new gasket on the throttle body.

IAC VALVE INSTALLATION

INSTALLATION HINT: Installation is in the reverse order of removal.
