Engine Main Relay
Engine Main Relay

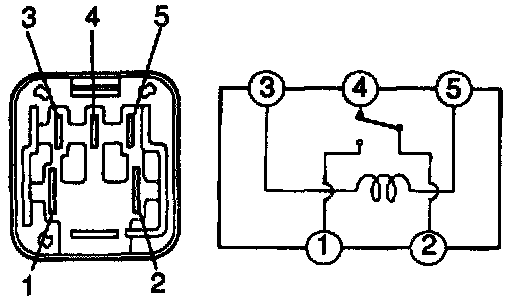

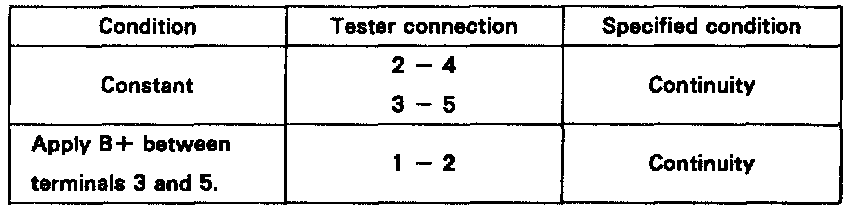

INSPECT ENGINE MAIN RELAY (Marking: E / G MAIN) CONTINUITY
If continuity is not as specified, replace the relay.
