Heater Core Case: Service and Repair

HEATER UNIT REMOVAL

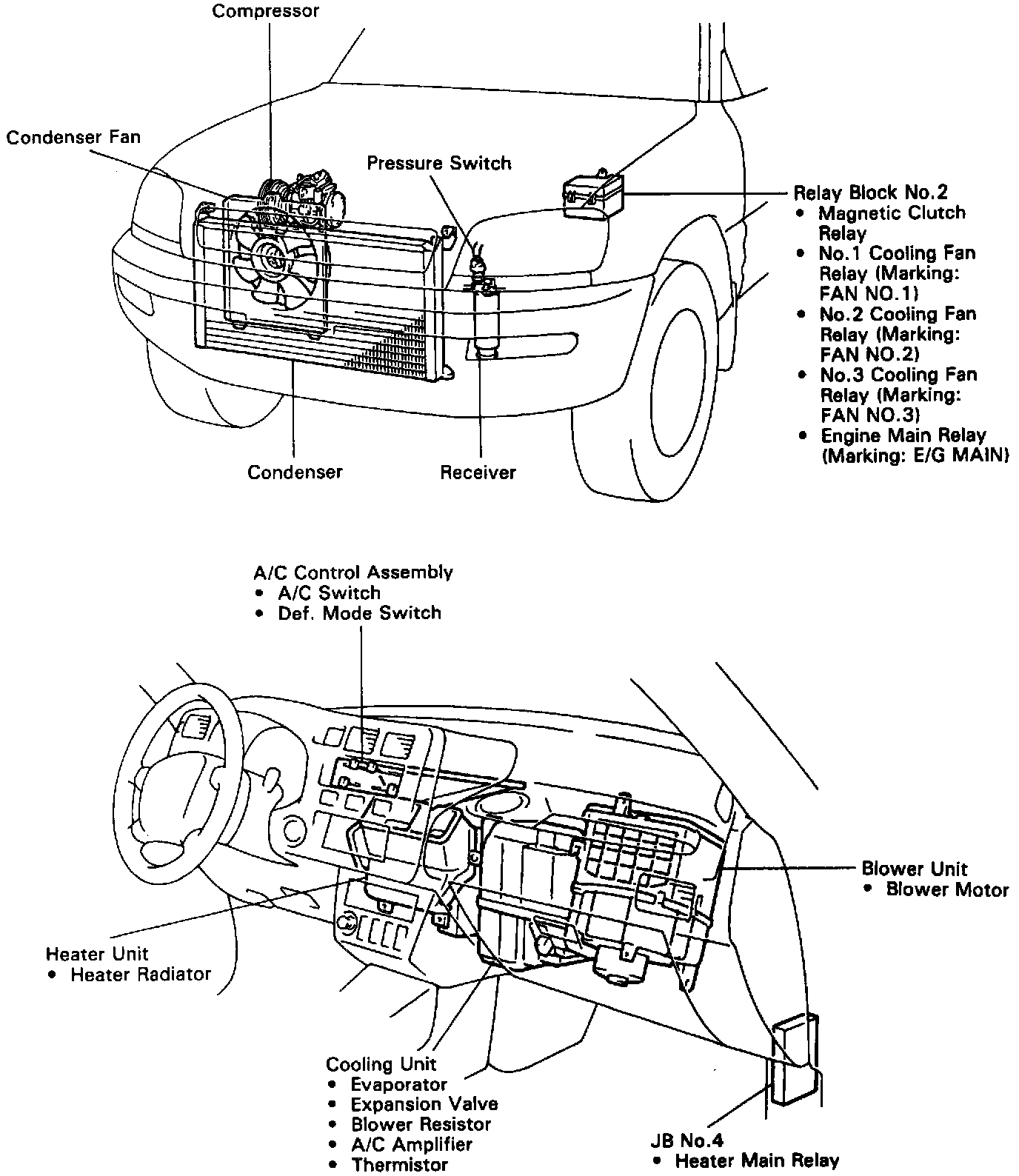

Heating And Air Conditioning System:

1. REMOVE COOLING UNIT
Service and Repair


2. DRAIN ENGINE COOLANT FROM RADIATOR

REMOVAL HINT: It is not necessary to drain out all the coolant.







3. DISCONNECT WATER HOSES FROM HEATER RADIATOR PIPES

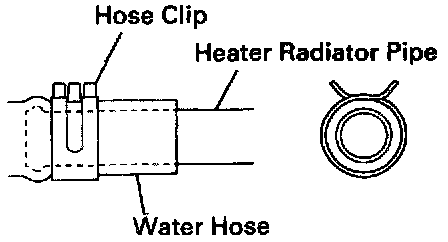

INSTALLATION HINT: Push the water hose as far as the possible onto the heater radiator pipe and install the hose clip.

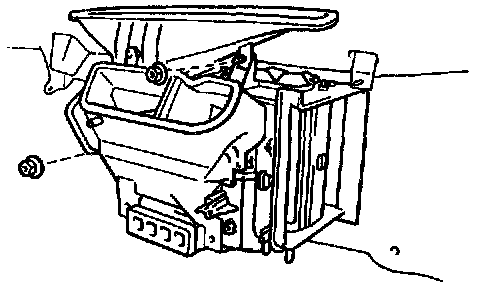

4. REMOVE HEATER UNIT







a. Remove the rear heater duct.







b. Remove the 2 nut and heater unit.


HEATER UNIT INSTALLATION
Installation is in the reverse order of removal.
