Toyota Truck
>>
1997
>>
RAV4 2-Door 2WD L4-2.0L (3S-FE)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Connector Views
Connector Views

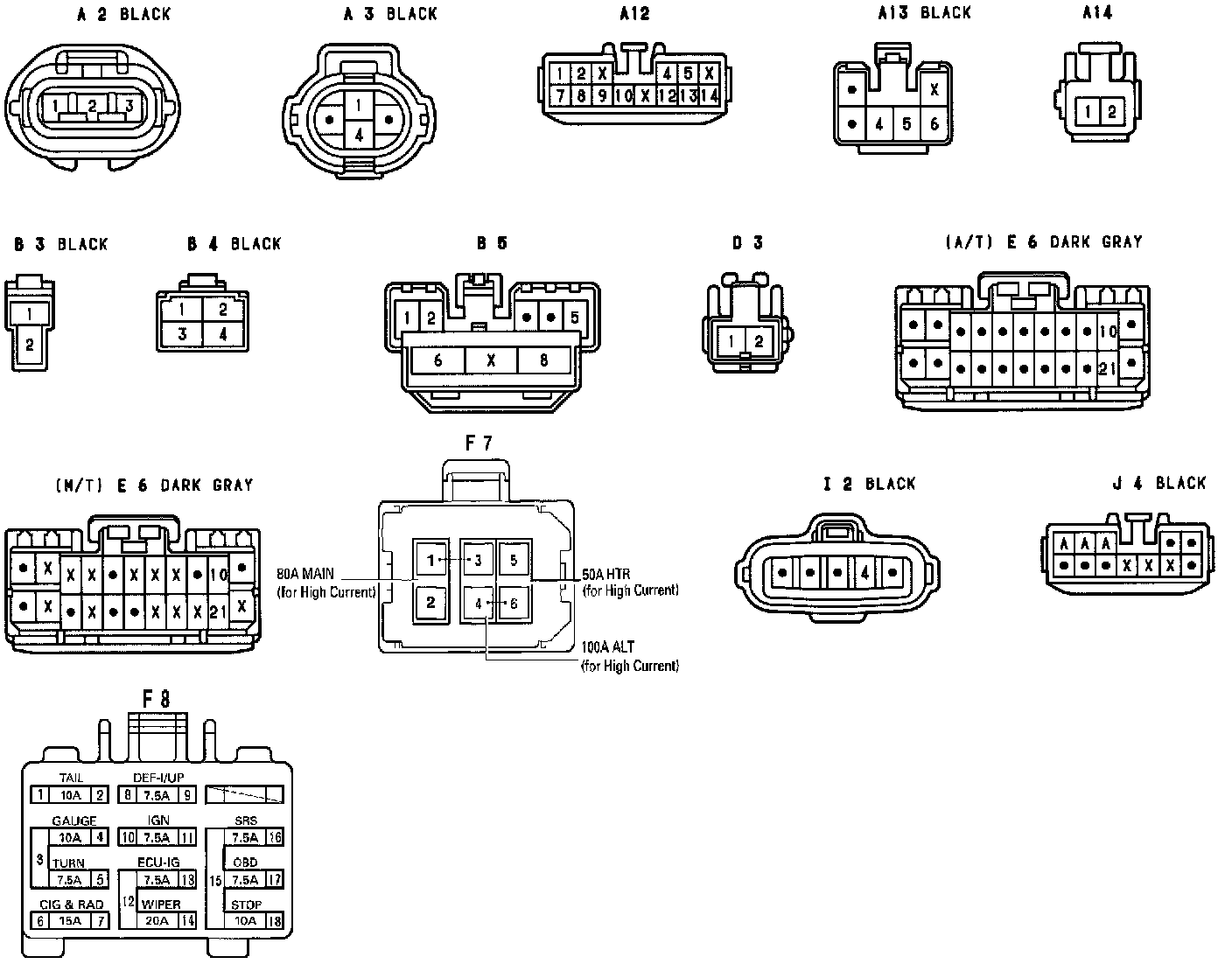

Air Conditioning-Connectors:
