Removal and Installation

CONDENSER FAN REMOVAL







1. DISCONNECT CONNECTOR FROM CONDENSER FAN


2. REMOVE CONDENSER

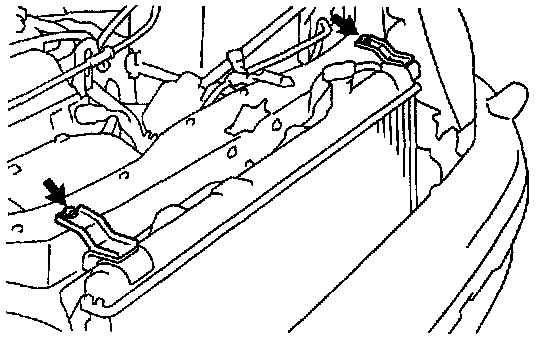

3. REMOVE RADIATOR UPPER MOUNTINGS







4. REMOVE CONDENSER FAN
a. Push the radiator toward the front bumper.

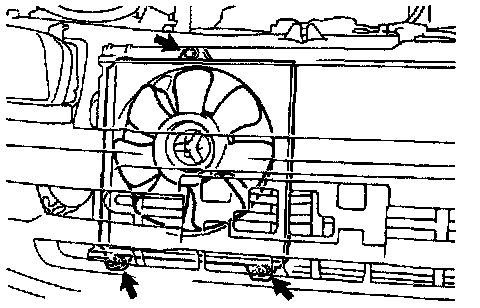

b. Remove the 3 bolts.
c. Push the condenser fan toward radiator and pull it upward.


CONDENSER FAN INSTALLATION
Installation is in the reverse order of removal.
