Disassembly and Reassembly

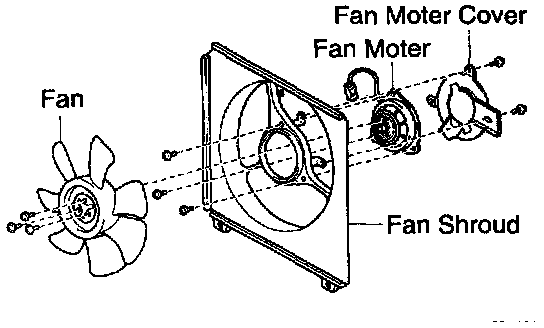

CONDENSER FAN DISASSEMBLY







1. REMOVE FAN
Remove the 3 screws and fan.

2. REMOVE FAN MOTOR COVER
Remove the 2 screws and motor cover.

3. REMOVE FAN MOTOR
a. Disconnect the wire and connector from the fan shroud.
b. Remove the 3 screws and fan motor.

CONDENSER FAN ASSEMBLY
Assembly is in the reverse order of disassembly.
