Compressor Clutch: Service and Repair

Magnetic Clutch:

MAGNETIC CLUTCH DISASSEMBLY







1. REMOVE PRESSURE PLATE

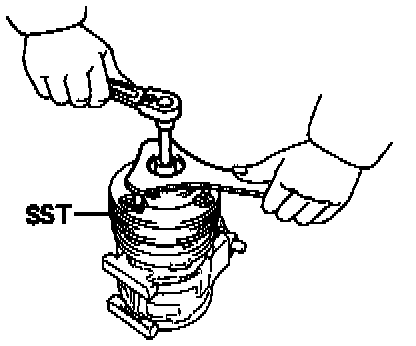

a. Using SST and a socket wrench. remove the shaft nut.
SST 07112-76060

Torque: 13.2 N.m (135 kg.cm, 9 ft.lb)

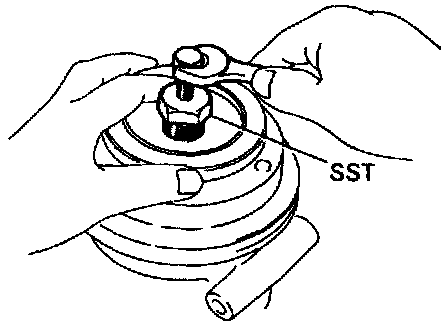

b. Using SST and a socket wrench, remove the pressure plate.
SST 07112-71010

c. Remove the shims from the shaft.

2. REMOVE ROTOR

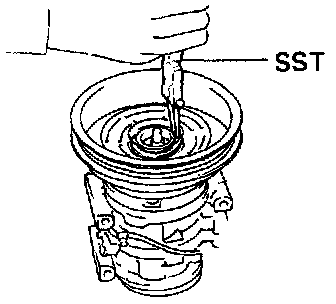

a. Using SST, remove the snap ring.
SST 07114-84010

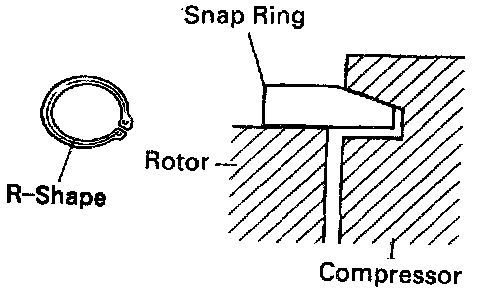

ASSEMBLY NOTE: The snap ring should be installed so that its beveled side faces up.

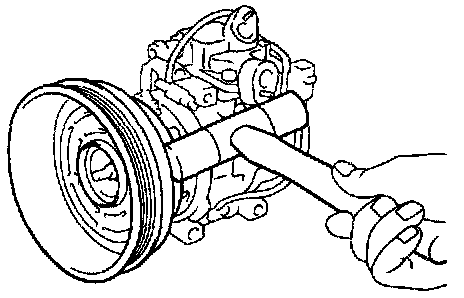

b. Using plastic hammer. tap the rotor off the shaft.


NOTE: Be careful not to damage the pulley when tapping on the rotor.

3. REMOVE STATOR

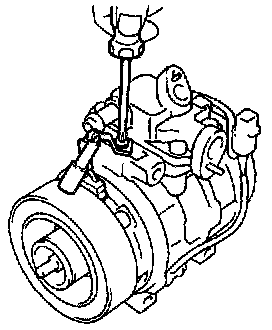

a. Disconnect the stator lead wires from the compressor housing.

Torque: 3.4 N.m (35 kg.cm, 30 in.lb)







b. Using SST, remove the snap ring and stator.
SST 07114-84020







ASSEMBLY NOTE: The snap ring should be installed so that its beveled side faces up.


MAGNETIC CLUTCH ASSEMBLY
Assembly is in the reverse order of disassembly.
