Blower Unit

BLOWER UNIT REMOVAL







1. REMOVE COOLING UNIT
Service and Repair

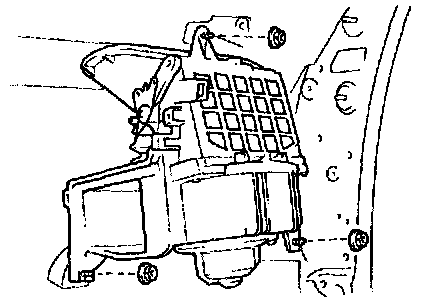

2. REMOVE BLOWER UNIT
a. Disconnect the connector.
b. Remove the 3 bolts and the blower unit.

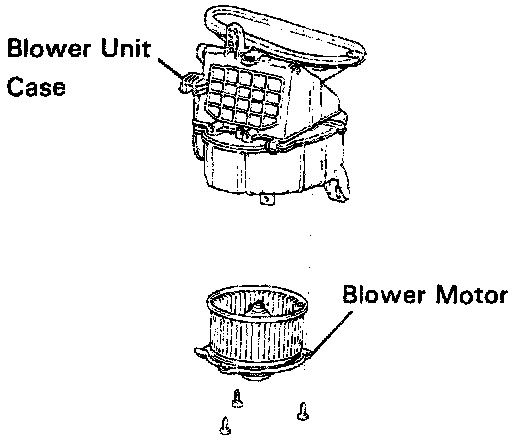

BLOWER UNIT DISASSEMBLY







REMOVE BLOWER MOTOR
Remove the 3 screws and the blower motor.

BLOWER UNIT ASSEMBLY
Assembly is in the reverse order of disassembly.


BLOWER UNIT INSTALLATION
Installation is in the reverse order of removal.
