Blower Motor Resistor: Service and Repair
BLOWER RESISTOR REMOVAL1. REMOVE GLOVE COMPARTMENT PARTS

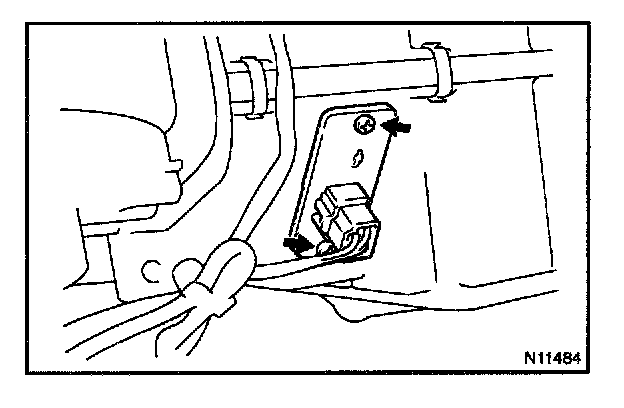

2. REMOVE BLOWER RESISTOR
a. Disconnect the connector.
b. Remove the 2 screws and blower resistor.
BLOWER RESISTOR INSTALLATION
Installation is in the reverse order of removal.
