Body

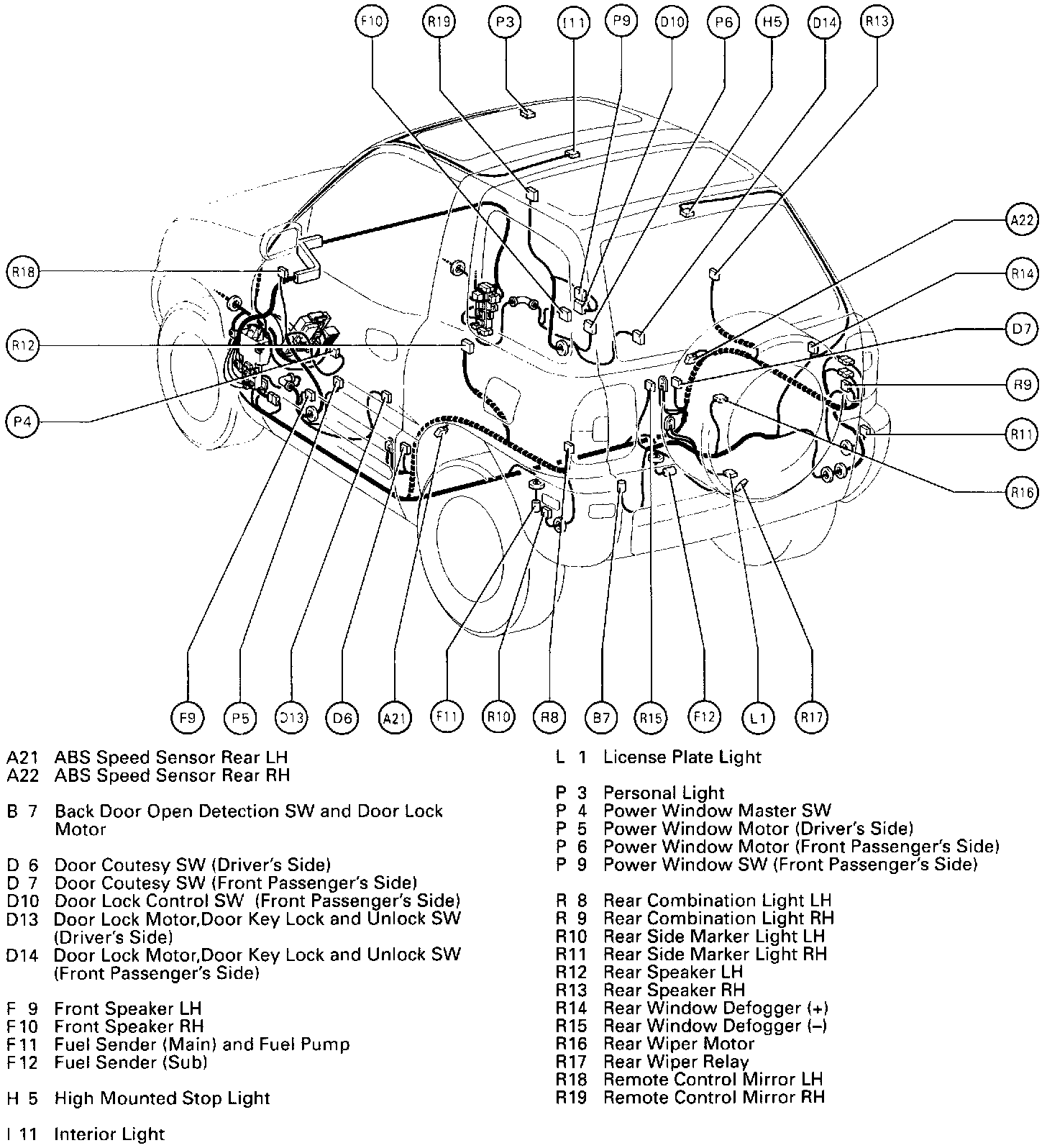

Position Of Parts In Body (2-Door) (Fig 34):

A21 ABS Speed Sensor Rear LH
A22 ABS Speed Sensor Rear RH

B 7 Back Door Open Detection SW and Door Lock Motor

D 6 Door Coutesy SW (Driver's Side)
D 7 Door Coutesy SW (Front Passenger's Side)
D10 Door Lock Control SW (Front Passenger's Side)
D13 Door Lock Motor, Door Key Lock and Unlock SW (Driver's Side)
D14 Door Lock Motor, Door Key Lock and Unlock SW (Front Passenger's Side)

F 9 Front Speaker LH
F10 Front Speaker RH
F11 Fuel Sender (Main) and Fuel Pump
F12 Fuel Sender (Sub)

H 5 High Mounted Stop Light

I11 Interior Light

L 1 License Plate Light

P 3 Personal Light
P 4 Power Window Master SW
P 5 Power Window Motor (Driver's Side)
P 6 Power Window Motor (Front Passenger's Side)
P 9 Power Window SW (Front Passenger's Side)

R 8 Rear Combination Light LH
R 9 Rear Combination Light RH
R10 Rear Side Marker Light LH
R11 Rear Side Marker Light RH
R12 Rear Speaker LH
R13 Rear Speaker RH
R14 Rear Window Defogger (+)
R15 Rear Window Defogger (-)
R16 Rear Wiper Motor
R17 Rear Wiper Relay
R18 Remote Control Mirror LH
R19 Remote Control Mirror RH
