Diagnosis Circuit

DIAGNOSIS CIRCUIT (TC Circuit)


CIRCUIT DESCRIPTION
This circuit sends a signal to the ECU that DTC output is required.

Diagnosis Circuit:

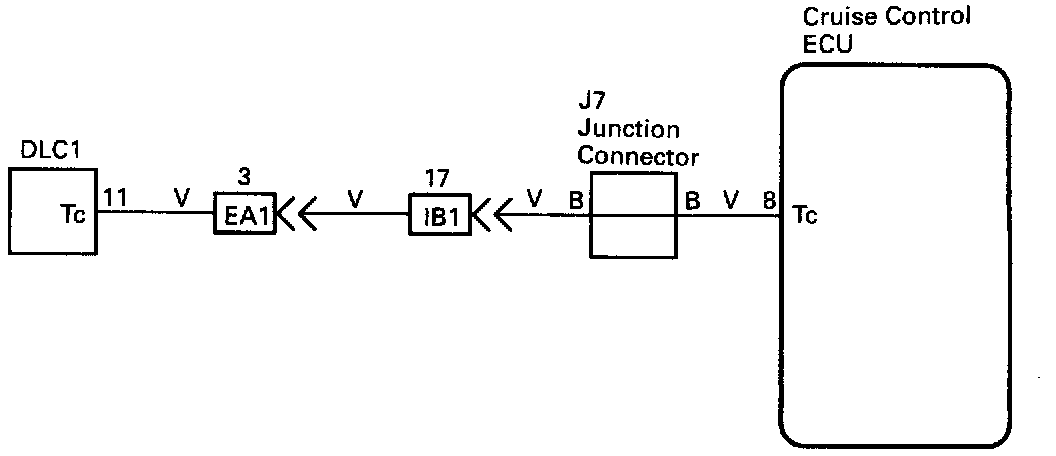

WIRING DIAGRAM

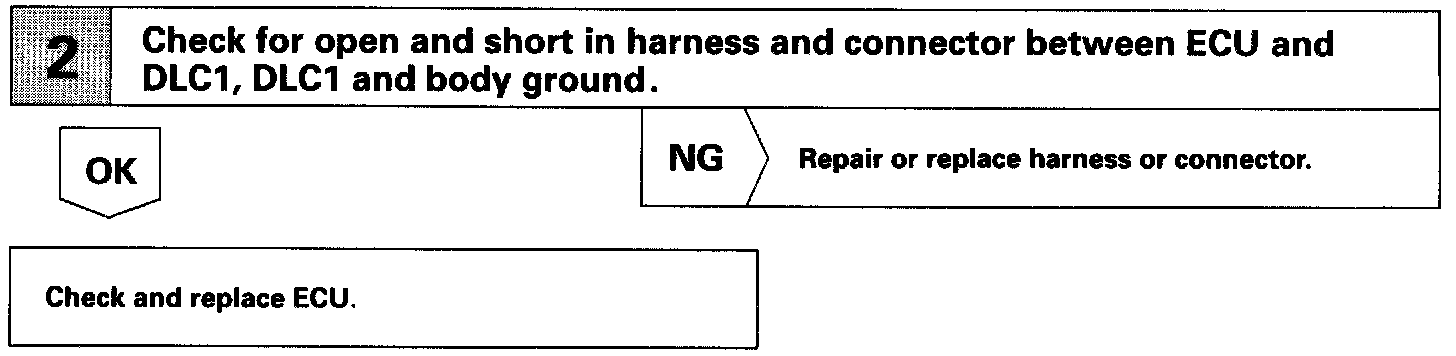

Inspection Procedure / Diagnosis Circuit (1 Of 2):

Inspection Procedure / Diagnosis Circuit (2 Of 2):

INSPECTION PROCEDURE
