Toyota Truck
>>
1997
>>
RAV4 2-Door 2WD L4-2.0L (3S-FE)
>>
Repair and Diagnosis
>>
Cruise Control
>>
Cruise Control Switch
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

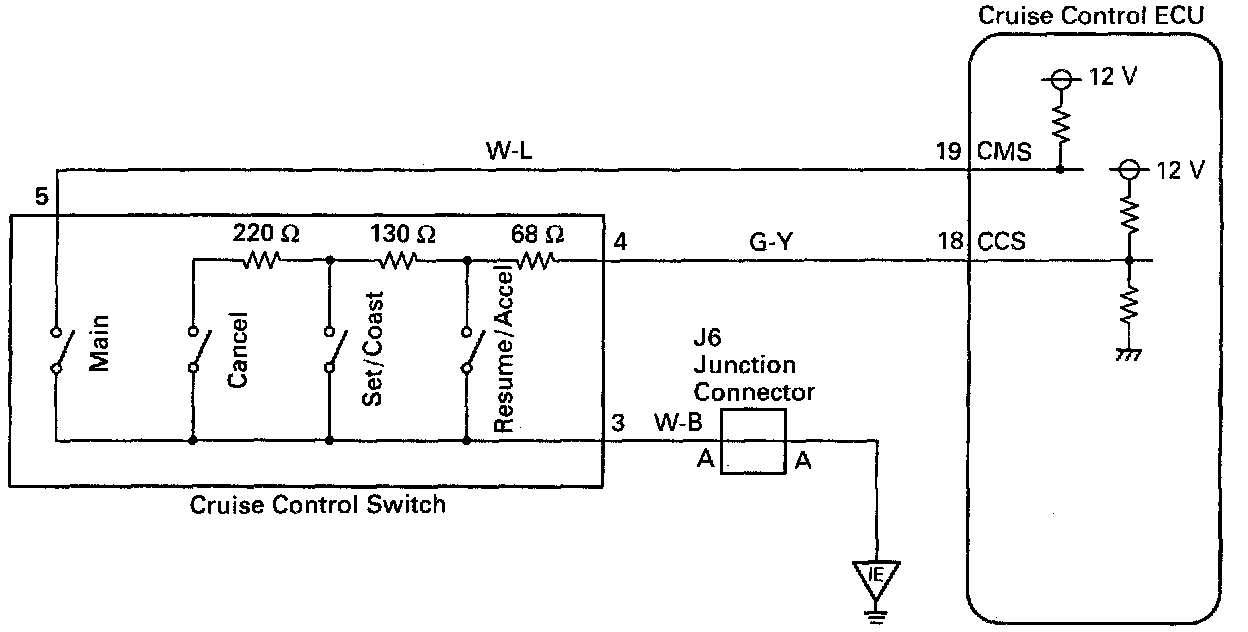

Control Switch Circuit (Cruise Control Switch):
