Rear

Rear Speed Sensor Components:

REMOVAL
1. Disconnect the Speed Sensor connector.
(a) Remove the seat cushion and rear side trim.

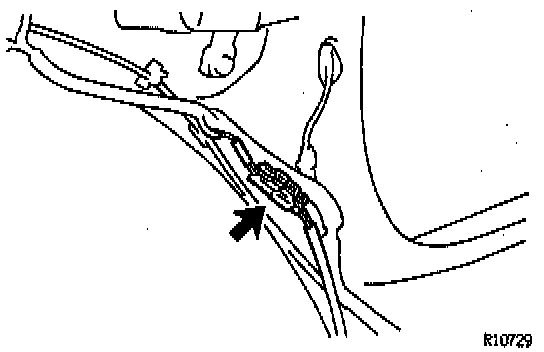

Disconnect Speed Sensor Connector:

(b) Disconnect the Speed Sensor connector, and pull out the sensor wire harness with the grommet.
(c) Disconnect the Parking Brake Cable from the suspension arm.
(d) Remove the 3 clamp bolts holding the sensor wire harness to the suspension arm.
Torque:
To Body: 5.0 Nm (48 inch lbs.)
To Suspension arm: 13 Nm (9 ft. lbs.)

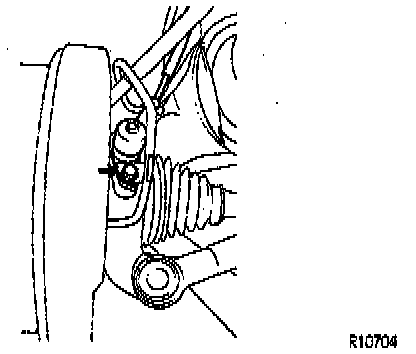

Remove Speed Sensor:

2. Remove Speed Sensor.
Remove the Speed Sensor from the Axle beam.
Torque: 8.0 Nm (69 inch lbs.)

INSTALLATION
Installation is in the reverse order of removal.
After installation, check Speed Sensor signal.
