Power Mirror Switch: Testing and Inspection
INSPECT

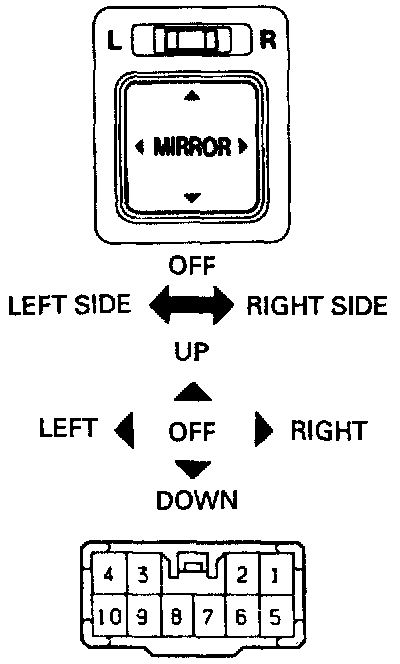

POWER MIRROR SWITCH
CONTINUITY

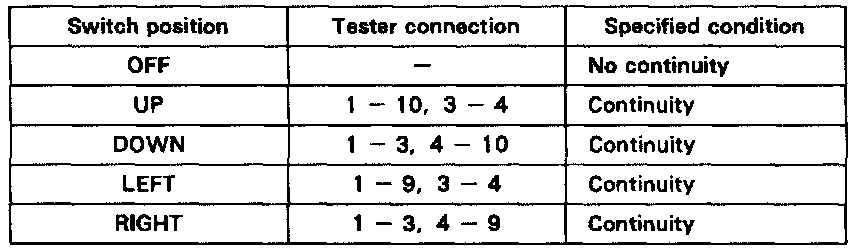

Left side:

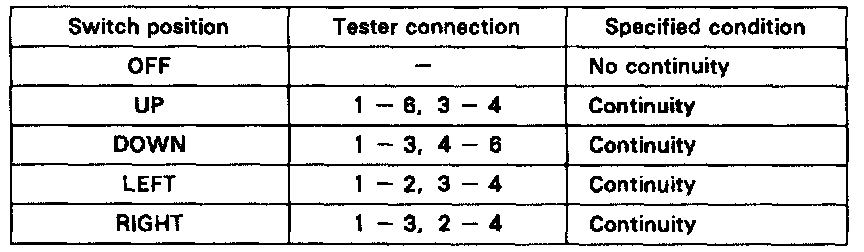

Right side:
If continuity is not as specified, replace the switch.
