Power Window Switch / Master Switch

POWER WINDOW MASTER SWITCH INSPECTION

1. INSPECT SWITCH CONTINUITY

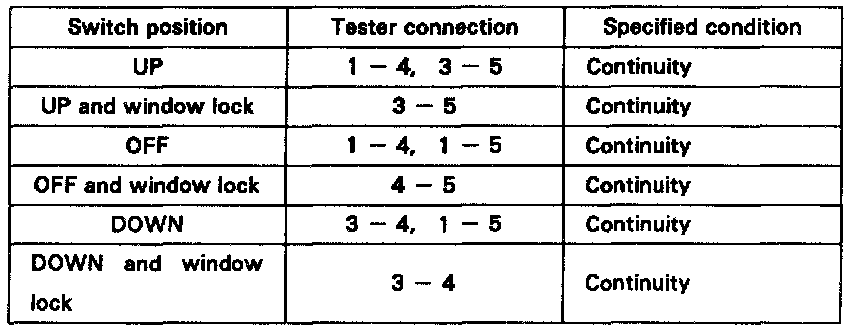

Power Window Master Switch Continuity / Front Driver's:

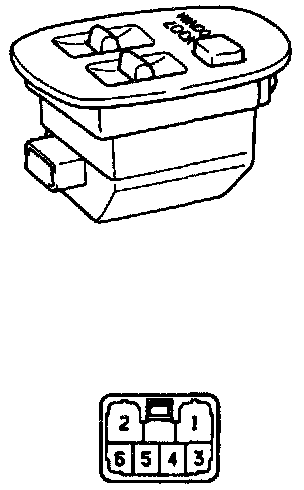

Front Driver's Switch:

Power Window Master Switch Continuity / Front Passenger's:

Front Passenger's Switch:







2. INSPECT SWITCH ILLUMINATION

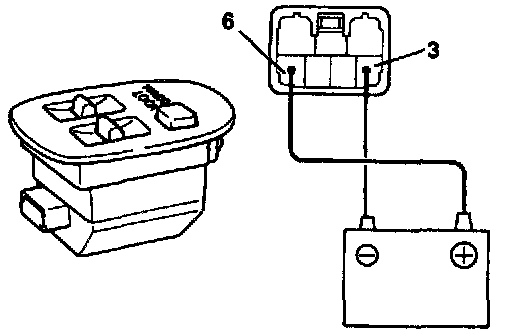

a. Connect the positive (+) lead from the battery to terminal 6 and the negative (-) lead to terminal 3.
b. Check that the illumination light lights up.
c. When the window lock switch pushed in, check the the passenger's illumination light goes off.

If operation is not as specified, replace the master switch.
