Power Window Relay: Testing and Inspection

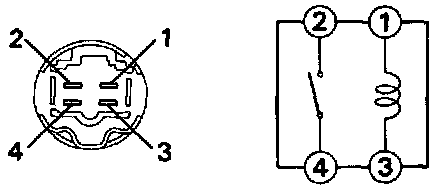

POWER MAIN RELAY INSPECTION

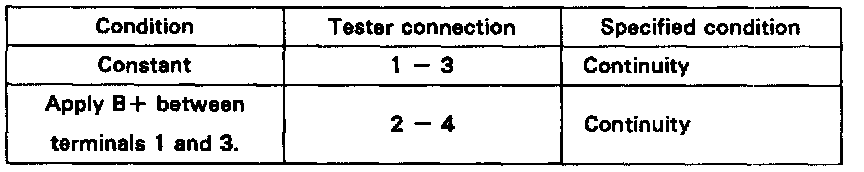

Power Main Relay Continuity:






INSPECT RELAY CONTINUITY
If continuity is not as specified. replace the relay.
