Power Window Circuit Breaker: Testing and Inspection

INSPECT CIRCUIT BREAKER OPERATION

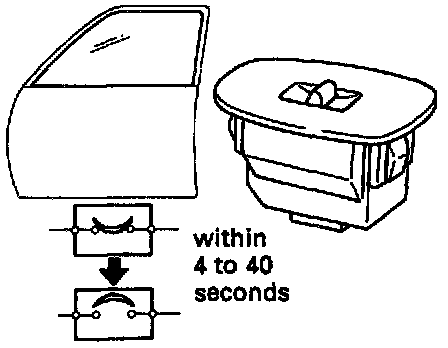

1. With the window in the full closed position. hold the power window switch in "UP" position and check that there is a circuit breaker operation noise within 4 to 40 seconds.

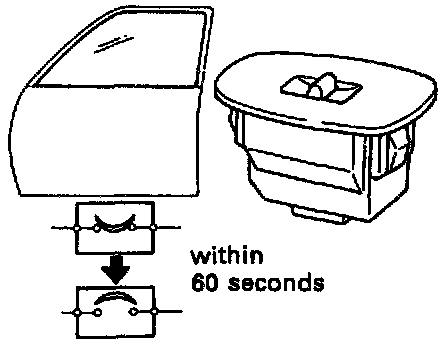

2. With the window in the full closed position. hold the switch in "DOWN" and check that the window begins to descend within 60 seconds.

If operation is not as specified. replace the motor.
