Transmission Temperature Sensor/Switch: Description and Operation

CIRCUIT DESCRIPTION

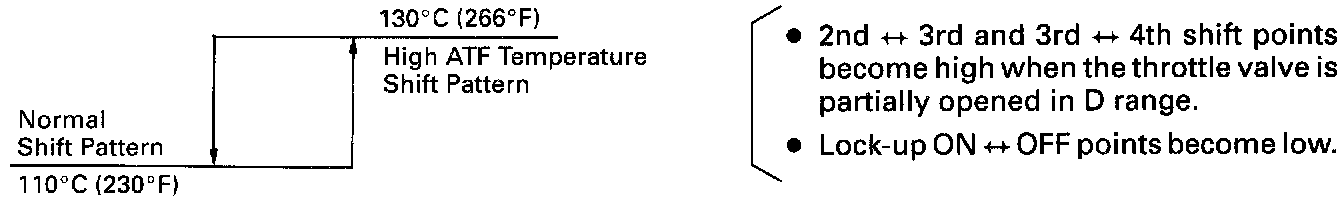

The ATF temperature sensor converts fluid temperature into a resistance value which is input into the ECM. The control which changes the shift point according to the signal from the ATF temperature sensor has been adopted in order to prevent the ATF temperature from becoming higher when it is already high.
