Component Tests and General Diagnostics

IGNITION SWITCH AND KEY UNLOCK WARNING SWITCH INSPECTION

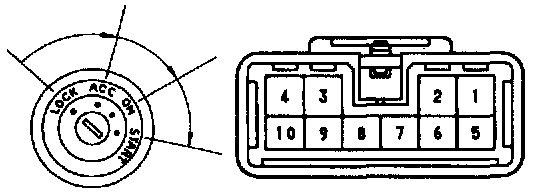

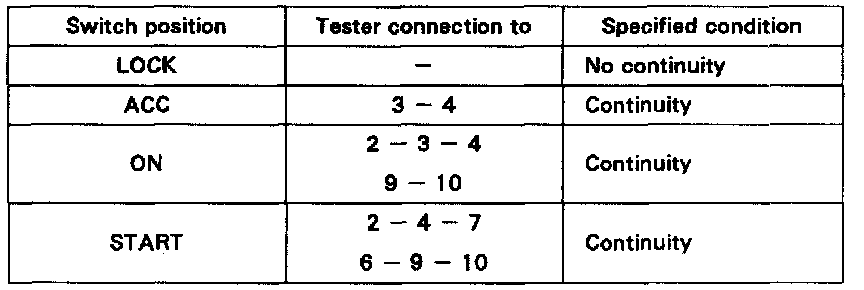

Ignition Switch Continuity:

1. INSPECT IGNITION SWITCH CONTINUITY
If continuity is not as specified, replace the switch.

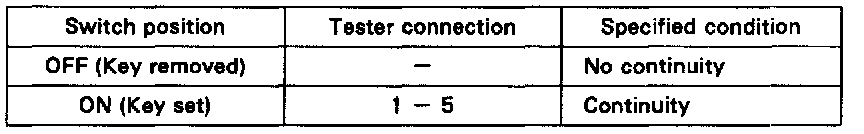

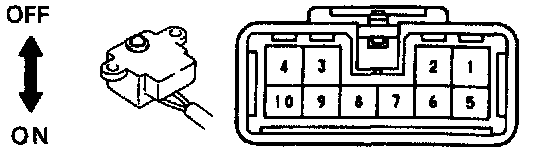

Key Unlock Warning Switch Continuity:

2. INSPECT KEY UNLOCK WARNING SWITCH CONTINUITY
If continuity is not as specified, replace the switch.
