1. INSPECT FRONT BEARING
Check that the bearing is not rough or worn.

2. IF NECESSARY, REPLACE FRONT BEARING







a. Remove the 4 screws. bearing retainer and bearing.

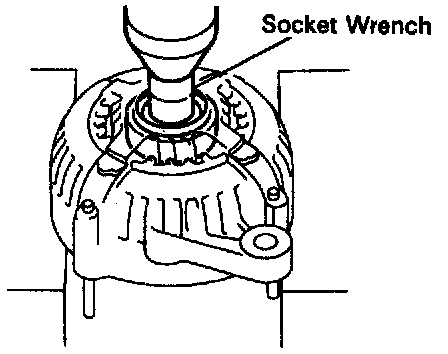

b. Using a socket wrench and press. press out the bearing.







c. Using SST and a press, press in a new bearing.
SST 09950-60010 (09951-00460)

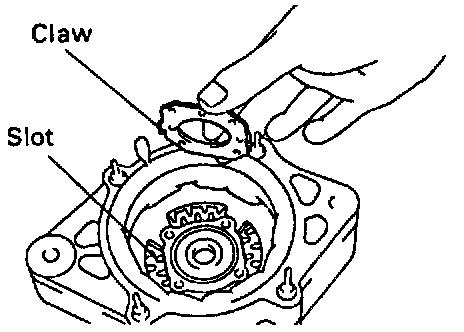

d. Align the claws of the bearing retainer with the slots of the drive end frame.
e. Install the bearing retainer with the 4 screws.

Torque: 3.0 N.m (31 kgf.cm, 27 in.lbf)

3. INSPECT REAR BEARING
Check that the bearing is not rough or worn.

4. IF NECESSARY, REPLACE REAR BEARING







a. Using SST, remove the bearing cover (outside) and bearing.
SST 09820-00021

NOTE: Be careful not to damage the tan.

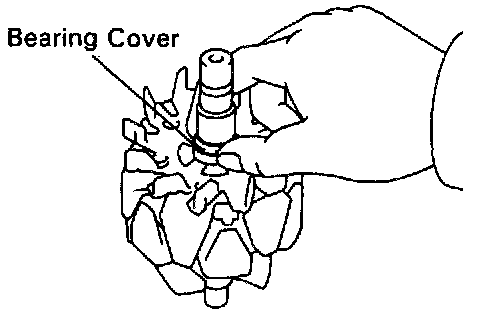

b. Remove the bearing cover (inside) on the rotor.







c. Place the bearing cover (inside) on the rotor.







d. Using SST and a press, press in a new bearing.
SST 09820-00030







e. Using SST, push in the bearing cover (outside).
SST 09285-76010
