Timing Cover

TIGHTENING SPECIFICATIONS

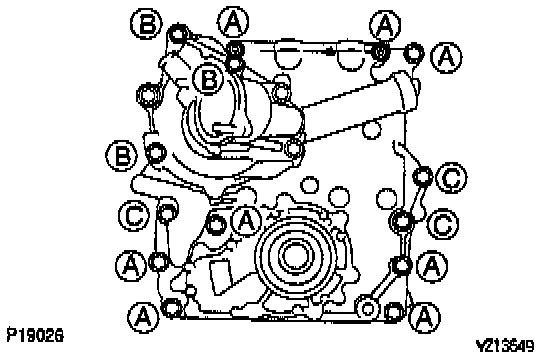

Timing Chain Case To Cylinder Block
For Bolt A: 20 Nm (200 kg.cm, 14 ft. lbs.)
For Nut A: 20 Nm (200 kg.cm, 14 ft. lbs.)
For Bolt B: 28 Nm (290 kg.cm, 21 ft. lbs.)
For Bolt C: 44 Nm (440 kg.cm, 32 ft. lbs.)
