General Torque Specifications

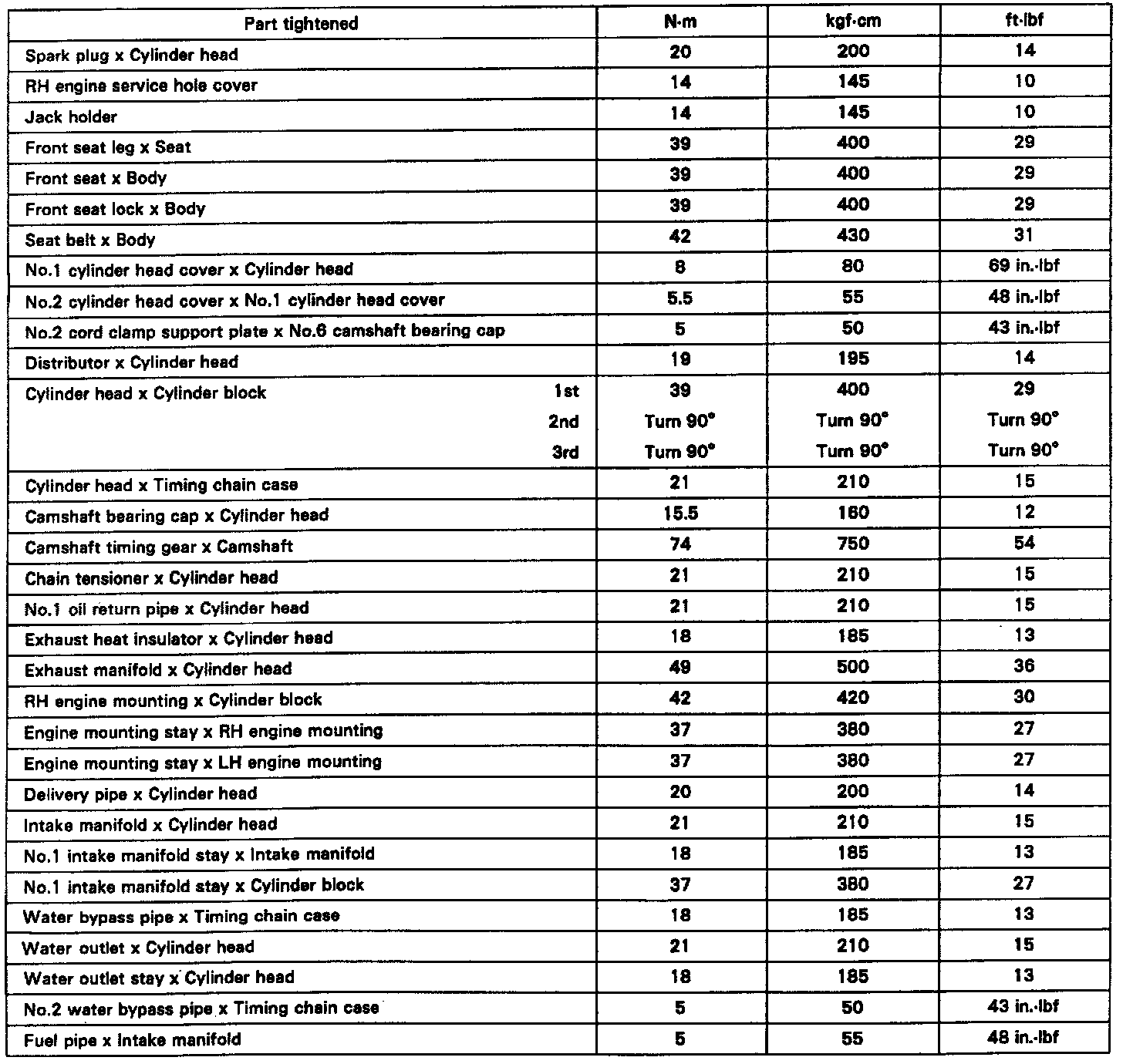

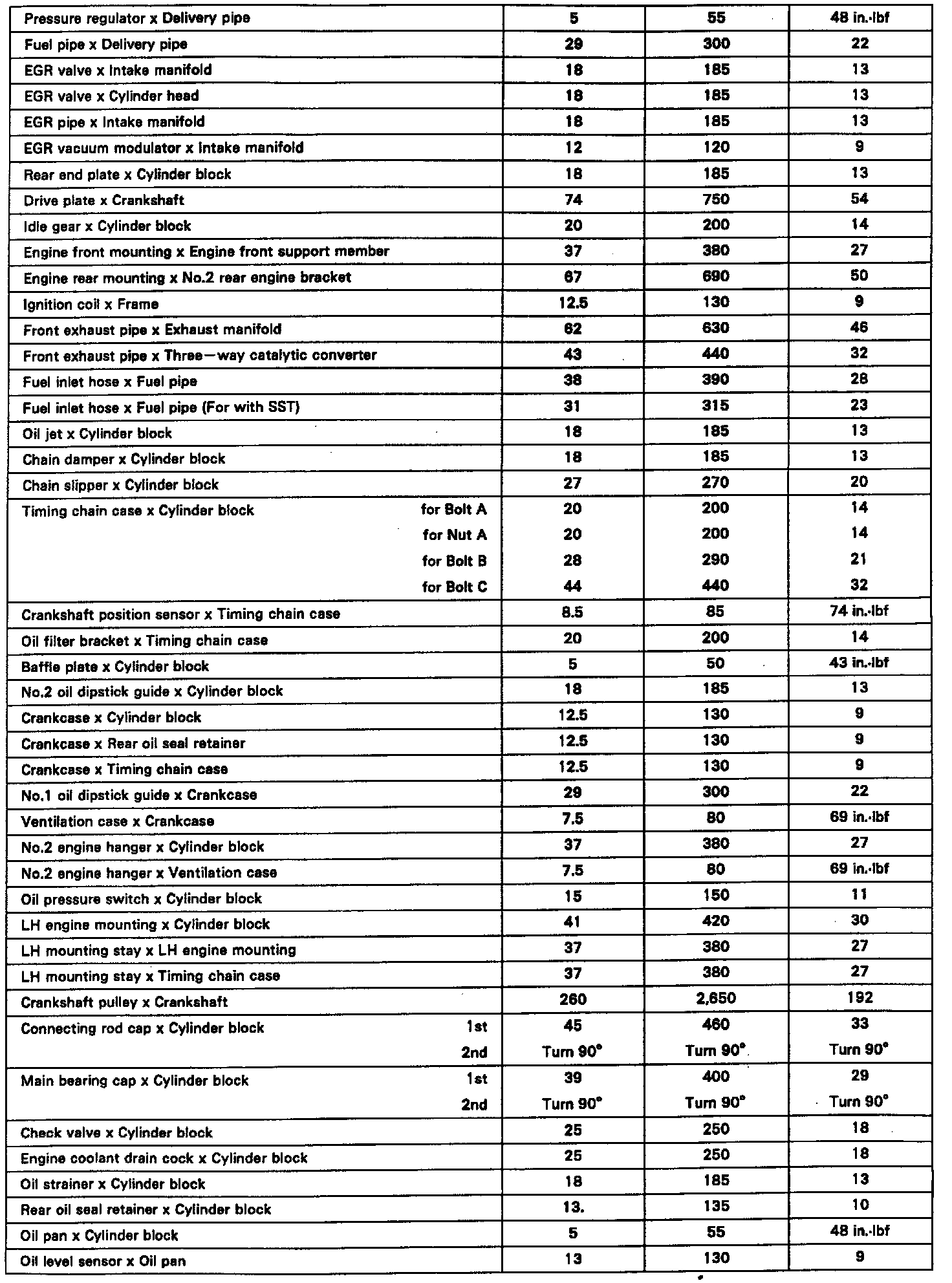

TORQUE CHART








TORQUE SEQUENCES

Camshaft Bearing Cap Removal and Installation Sequences
Proper removal and installation procedures are essential to camshaft durability and to avoid damage. Refer to Cylinder Head Assembly; Service and Repair for detailed camshaft removal and installation procedures.

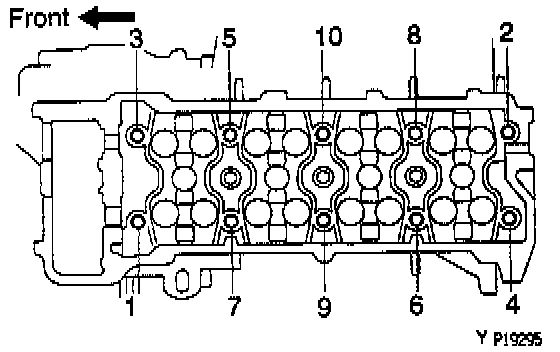

Cylinder Head Bolt Removal Sequence

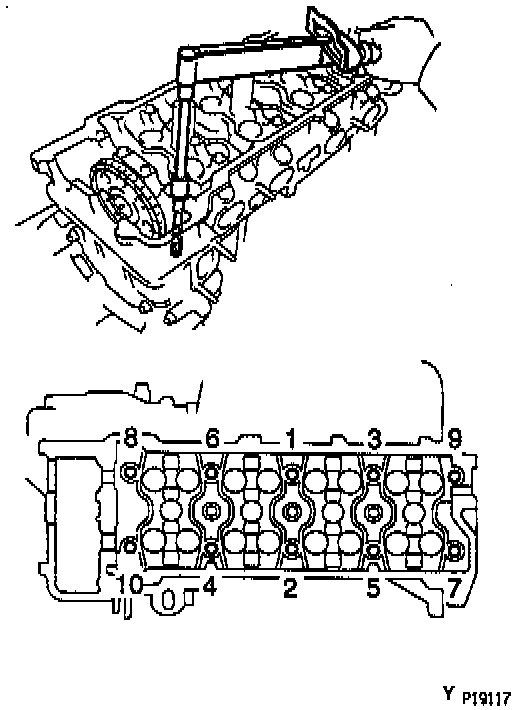

Cylinder Head Bolt Tightening Sequence

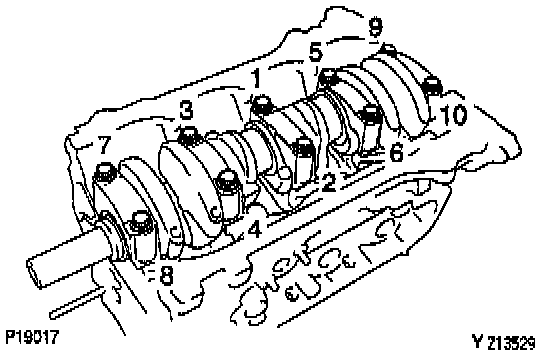

Main Bearing Cap Bolts Removal Sequence

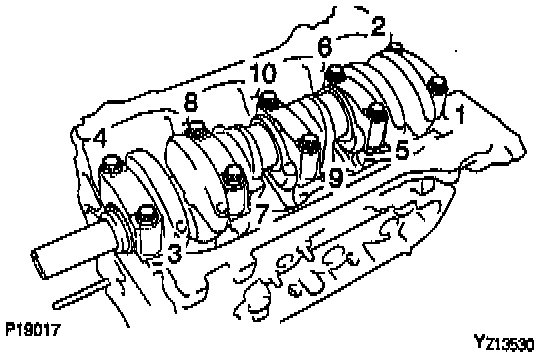

Main Bearing Cap Bolts Tightening Sequence

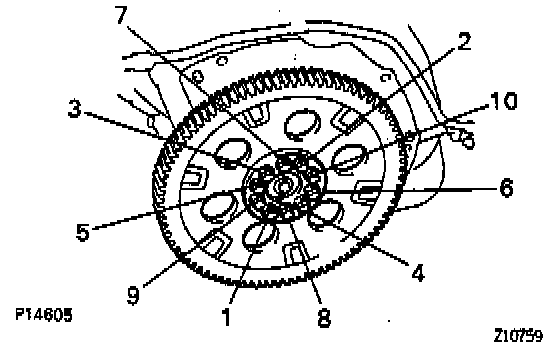

Drive Plate Bolt Tightening Sequence





See also: Refer to Diagrams/Exploded Views at component level.
