Camshaft

TIGHTENING SPECIFICATIONS
Camshaft Bearing Cap To Cylinder Head: 15.5 Nm (160 kg.cm, 12 ft. lbs.)

Install and uniformly tighten the bearing cap bolts, in several passes, in the applicable sequence shown.

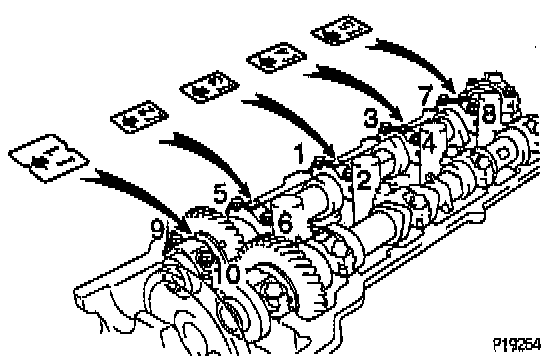

Intake Sequence

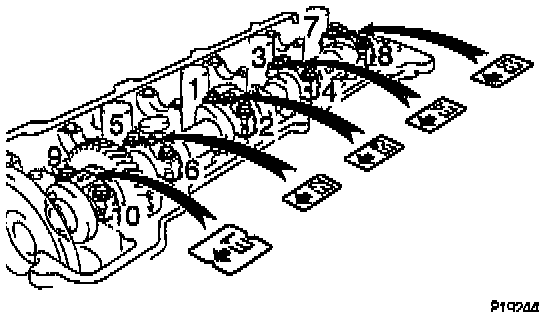

Exhaust Sequence
